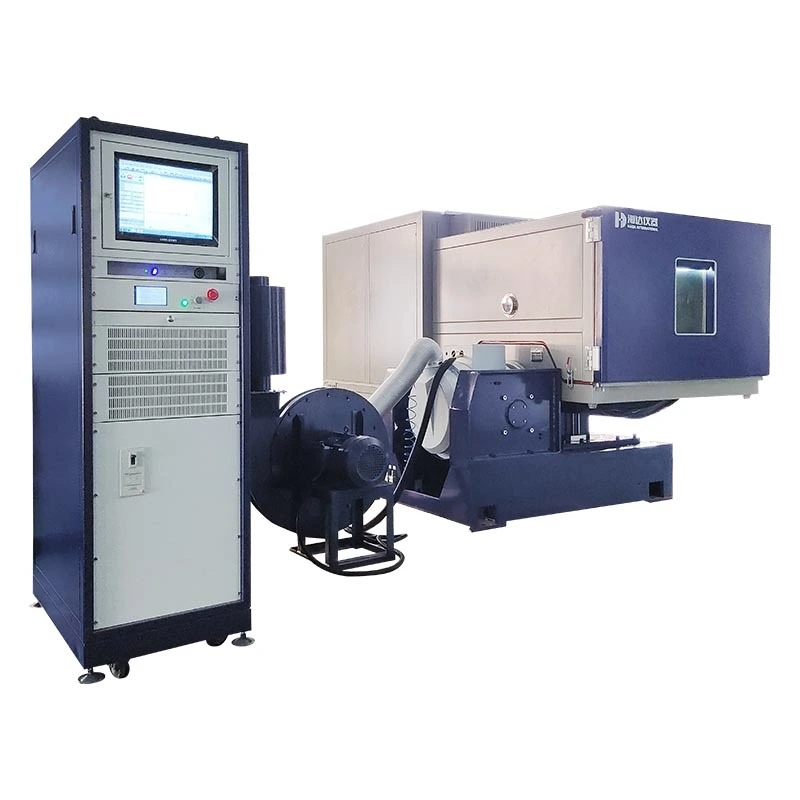

Temperature and Humidity and Vibration Test Chamber HD-E809
Temperature and Humidity and Vibration Test Chamber adalah alat pengujian lingkungan terpadu yang dirancang untuk mengevaluasi ketahanan dan keandalan produk terhadap kombinasi perubahan suhu, kelembapan, serta paparan getaran secara bersamaan. Alat ini mampu mensimulasikan berbagai kondisi lingkungan ekstrem seperti perubahan temperatur tinggi dan rendah, kelembapan tinggi, serta getaran mekanis yang dapat terjadi selama proses transportasi, penyimpanan, maupun penggunaan produk di lapangan. Dengan menggabungkan fungsi temperature & humidity chamber dengan sistem vibration testing, peralatan ini dapat menguji stabilitas, kekuatan struktur, ketahanan material, serta performa komponen elektronik dan mekanis dalam kondisi lingkungan yang kompleks. Dilengkapi dengan sistem kontrol PLC atau komputer, sensor temperatur dan kelembapan presisi tinggi, sistem pendingin dan pemanas yang stabil, vibration shaker berperforma tinggi, accelerometer, serta perangkat lunak monitoring dan analisis data, Temperature and Humidity and Vibration Test Chamber mampu menghasilkan hasil pengujian yang akurat, konsisten, dan dapat diandalkan. Peralatan ini banyak digunakan pada industri otomotif, elektronik, aerospace, baterai, komunikasi, pertahanan, dan laboratorium penelitian untuk melakukan pengujian seperti environmental stress screening (ESS), vibration endurance test, thermal cycling test, serta reliability testing sesuai standar internasional seperti IEC, ISO, ASTM, MIL-STD, JIS, dan GB. Dengan kemampuan mensimulasikan kondisi lingkungan nyata secara menyeluruh, alat ini membantu memastikan produk memiliki kualitas, keamanan, daya tahan, dan umur pakai yang optimal sebelum digunakan atau dipasarkan.
Produk Spesifikasi
| Model | HD-E809 |
| Internal chamber dimension (W*D*H) | 1000*1000*1000mm |
| External chamber dimension(W*D*H) | 1200*3000*3800mm approx. |
| Temperature range | -40 ℃~ 150℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | 2℃ |
| Cooling speed(temp. Range: 85C~-40C) | 5℃/min in average; without loading |
| Heating speed(temp. Range: -40C~85C) | 5℃/min in average; without loading |
| Humidity range | 10~98%RH (please refer to the below humidity curve) |
| Humidity fluctuation | ±3%RH |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel with paint spray |
| Cooling method | Water-cooled |
| Controller | Programmable control temperature and humidity |
| Can set different parameter for cyclic test | |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor | German Bock compressor |
| Refrigerant | Environmental friendly refrigerant R449A/R23 |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | 2 units with diameter 100mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
| Safety protection device | Protection for leakage Over-temperature |
| Compressor over-voltage and overload | |
| Heater short circuit | |
| Vibration Shaker | |
| Max. Sine Force | 3200Kg.f peak |
| Max. Random Force | 3200Kg.f r.ms |
| Max. Shock Force | 6400Kg.f peak |
| Frequency Range | 2~3000Hz |
| Displacement (p-p) | 51 mm |
| Max. Velocity | 2m/s |
| Max. Table Acceleration | 100g (without loading) |
| Armature Diameter | 335mm |
| Effective Armature Mass | 30kg |
| HE/ST screw dimension | 17×M10 |
| Max. Load Capacity | 300kg |
| Magnetic Leakage | ＜10gauss |
| Axial Vibration Isolation Frequency | <2.5Hz |
| Power | Three-phase, 380V, 50Hz |
| Machine dimension | 845mm*790mm*840mm; without expander table |
| Vibration controller system | |
| Controller Hardware | No of input channels: 02 analogue channels ADC: 24-bit Resolution |
| No of output channels: 01 DAC: 24-bit Resolution | |
| USB 2.0 communication port | |
| Controller Software Modules | Random Vibration (1-5000Hz), Sweep Sine Vibration (1-5000Hz), Classical Shock, Resonance Search, Track and Dwell and Self Calibration |
| Other accessory | Test Computer: LENOVO M4500 |
| Printer: HP 1020plus | |
| Customer Responsibilities | Installing all utilities where required, including connecting utilities to the equipment Installation/rigging of equipment |
| Completing any necessary building alterations including roof penetrations | |
| Customers responsible for any permits required by – local/state government | |
