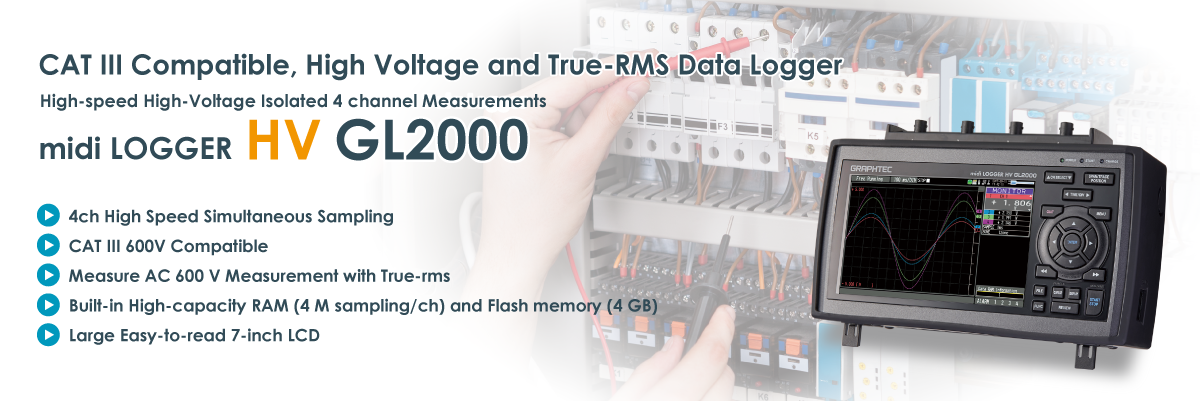

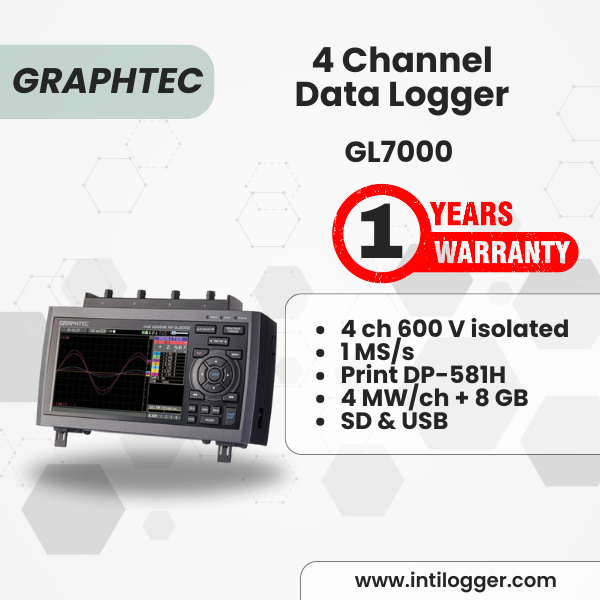

GL2000 – Data Logger Tegangan Tinggi, Cepat & Andal
CAT III 600V – High-voltage & High-speed Measurement
GL2000 adalah data logger 4 kanal berisolasi tegangan tinggi yang mendukung standar keselamatan CAT III 600 V serta pengukuran hingga 600 V rms. Semua kanal memiliki isolasi independen dan mampu melakukan sampling berkecepatan tinggi hingga 1 MS/s secara simultan.
Alat ini dirancang untuk pengukuran peralatan pabrik maupun aplikasi pengukuran tegangan tinggi dengan akurasi tinggi.
Fitur Utama GL2000
Isolasi Tegangan Tinggi – 4 kanal isolated, mendukung hingga CAT III 600 V / 600 V rms
Kecepatan Sampling Tinggi – Semua kanal dapat merekam hingga 1 juta sampel per detik (1 MS/s) secara bersamaan
Pencetakan Data Langsung – Mendukung koneksi printer thermal DP-581H untuk cetak data di tempat → membantu mencegah pemalsuan & manipulasi data
Penyimpanan Data Fleksibel
Internal: RAM 4 MW per kanal + Flash memory 8 GB
Eksternal: Mendukung SD memory card & USB memory sesuai kebutuhan interval sampling
GL2000 – Spesifikasi Teknis
| Item | Description |
|---|---|
| Display (LCD) | 7-inch TFT color LCD (WVGA: 800 × 480 dots) |
| Displayed Information | Waveform in Y-T with digital values, Enlarged waveforms, Digital values, Real-time statistical results, XY graph |
| Languages | English, French, German, Spanish, Russian, Chinese, Korean, Japanese |
| PC Interface | Ethernet (10BASE-T/100BASE-TX), USB 2.0 |
| PC Functions | Data transfer to PC (up to 1 ms sampling), Control command to GL2000 |
| Ethernet Functions | Web server, FTP server, NTP client, DHCP client, Email sending |
| USB Functions | File transfer & deletion from built-in flash and SD |
| Trigger Functions | Action: Start/stop data capture Sources: Signal, Alarm, External, Scheduled time/day, Elapsed time Combination: Level OR/AND, Edge OR/AND Threshold: Analog (High/Low, Rising/Falling, Window-in/out), Logic (H/L, 4-ch pattern), Pulse (High, Rising, Low, Falling, Window-in/out) Repeat: Auto re-arm On/Off Hold-off: 0 sec to 9999 hrs 59 min 59 sec Accuracy: ±0.5% of range Pre-trigger: Up to 4M points (RAM only) |
| Alarm Functions | Action: Display + output signal Threshold: Analog, Logic, Pulse Combination: OR condition per channel Detection cycle: Linked with analog sampling Accuracy: ±0.5% of range Alarm holding: On/Off |
| Storage Device | Built-in RAM: 4M samples/ch (partition options: 4M×1, 2M×2, 1M×4, 500k×8) Built-in Flash: 4 GB (~3.9 GB usable) External USB: USB 2.0 flash memory, unlimited capacity SD Card: SDHC up to 32 GB |
| Capturing Modes | Normal: Save from start to stop Ring: Save most recent data (1000–10,000,000 points) Relay: Save multiple files until stop (max. 4 GB/file) Sampling: RAM up to 1 MS/s, external up to 1 kS/s (GBD) or 100 S/s (CSV) |
| Data Backup | Interval: Off, 1–24 hrs, scheduled, or manual Destinations: Built-in Flash, USB, SD, FTP Formats: GBD (binary), CSV (text) Hot-swapping: USB/SD supported |
| Search Functions | By analog levels, logic pattern, pulse events (Rising/Falling/Window), alarms |
| Calculation Functions | Statistical (Real-time): Max, Min, P-P, Avg Replay: Max, Min, P-P, Avg, RMS Channel math: Add, Subtract, Multiply, Divide (GBD only) |
| Scaling (Engineering Unit) | Voltage (4-point ref), Temperature (2-point ref), Pulse count (2-point ref) |
| Annotation | Up to 31 characters/channel (8 chars shown on screen) |
| Operating Environment | 0–40 °C (AC/battery), 5–85% RH (non-condensed) |
| Power Source | AC 100–240 V (50/60 Hz), DC 8.5–24 V (B-514 cable), Battery pack (B-569 × 2) |
| Power Consumption | AC 240 V: ~39 VA (59 VA charging) DC 24 V: ~0.5 A (0.81 A charging) DC 12 V: ~1 A (no charging) DC 8.5 V: ~1.46 A (no charging) |
| Dimensions (W×H×D) | Approx. 260 × 161 × 83 mm (with cover) |
| Weight | Approx. 1.7 kg (with cover, excl. AC adapter & battery) |
| Vibration Resistance | JIS Vibration Test, Automobile Type 1 Class A (5 m/s² durability) |
GL2000 – Input Specifications
| Item | Description |
|---|---|
| Number of Input Channels | 4 channels |
| Input Terminal Type | Isolated BNC connector and Screw terminal (M3.5) |
| Input Method | All channels isolated, unbalanced input, simultaneous sampling |
| Sampling Speed (Interval) | 1 MS/s to 1 sample/min (1 µs to 1 min), and External • 1, 2, 5, 10, 20, 50, 100, 200, 500 µs • 1, 2, 5, 10, 20, 50, 100, 200, 500 ms • 1, 2, 5, 10, 20, 30 sec, 1 min • Built-in RAM: 1 µs to 1 min • Other storage: 1 ms to 1 min |
| Frequency Response | DC to 200 kHz (within +1/–4 dB) |
| Measurement Range – Voltage (DC) | 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000 V, and 1–5 V F.S. Max. rated safety voltage: ±600 V DC |
| Measurement Range – DC-RMS | 10 mV to 1000 V rms F.S. • Max. rated safety voltage: 600 V rms • Crest factor: 1.4 (1000 V range, peak max. 850 V), up to 2 (other ranges) • Frequency response: 20 Hz to 10 kHz • True RMS (includes DC + AC components) |
| Measurement Range – Temperature | Thermocouple types: K, J, E, T, R, S, B, N, W (WRe5-26) |
| Measurement Range – Humidity | 0–100 % RH (with optional B-530 humidity sensor) |
| Filter (Low Pass) | Off, Line (1.5 Hz), 5, 50, 500 Hz, 5 kHz, 50 kHz (–3 dB, –6 dB/oct) |
| A/D Converter | 16-bit (effective resolution: 1/40,000 of F.S.) |
| Measurement Accuracy – Voltage (DC) | ±0.25% of Full Scale |
| Measurement Accuracy – Voltage (RMS) | ±1.5% of Full Scale (sine wave, 20 Hz–10 kHz) |
| Measurement Accuracy – Temperature (Thermocouple) | <table><tr><th>Type</th><th>Range</th><th>Accuracy</th></tr><tr><td>R/S</td><td>0–100°C 100–300°C R: 300–1600°C S: 300–1760°C</td><td>±7.0°C ±5.0°C ±(0.05% rdg + 3.0°C) ±(0.05% rdg + 3.0°C)</td></tr><tr><td>B</td><td>400–600°C 600–1820°C</td><td>±5.5°C ±(0.05% rdg + 3.0°C)</td></tr><tr><td>K</td><td>–200 to –100°C –100 to 1370°C</td><td>±(0.05% rdg + 3.0°C) ±(0.05% rdg + 2.0°C)</td></tr><tr><td>E</td><td>–200 to –100°C –100 to 800°C</td><td>±(0.05% rdg + 3.0°C) ±(0.05% rdg + 2.0°C)</td></tr><tr><td>T</td><td>–200 to –100°C –100 to 400°C</td><td>±(0.1% rdg + 2.5°C) ±(0.1% rdg + 1.5°C)</td></tr><tr><td>J</td><td>–200 to –100°C –100 to 100°C 100–1100°C</td><td>±3.7°C ±2.7°C ±(0.05% rdg + 2.0°C)</td></tr><tr><td>N</td><td>–200 to 0°C 0–1300°C</td><td>±(0.1% rdg + 3.0°C) ±(0.1% rdg + 2.0°C)</td></tr><tr><td>W</td><td>0–2315°C</td><td>±(0.1% rdg + 2.5°C)</td></tr></table> |
| Reference Junction Compensation (RJC) | Internal or External, Accuracy ±1.0°C |
| Burnout Detection | Thermocouple burnout detection (menu, free-run mode) |
| Input Impedance | 1 MΩ ±5% |
| Signal Source Impedance | Up to 1 kΩ |
| Maximum Input Voltage | (+)–(–): • 20 mV–2 V range: 30 V DC/AC • 5–1000 V range: 600 V DC/AC (–)–(–) between channels: 600 V DC/AC (CAT III, impulse 6000 V) Channel–GND: 600 V DC/AC (CAT III, impulse 6000 V) |
| Withstand Voltage | Between channels: 5400 V DC/AC (1 min) Between channels–GND: 5400 V DC/AC (1 min) |
| Isolation Resistance | Min. 50 MΩ (at 500 V DC, input–GND) |
| Common-Mode Rejection Ratio (CMRR) | Min. 90 dB (50/60 Hz, source impedance ≤300 Ω) |
| Signal-to-Noise Ratio (SNR) | 20 mV range: –40 dB (shorted input) Other ranges: –50 dB (shorted input) |
GL2000 – External Input/Output Specifications
| Item | Description |
|---|---|
| External I/O | |
| **Input (11, 12) | Logic or Pulse (4 channels), Trigger or Sampling (1 channel) |
| **Output (11, 13) | Alarm (4 channels) or Trigger (1 channel) with Alarm (3 channels) |
| Input Signal Specification | |
| Logic & Pulse | Voltage range: 0 to +30 V (common ground) Threshold: ~ +2.5 V Hysteresis: ~ 0.5 V (+2.5 to +3 V) |
| External Trigger & Sampling | Voltage range: 0 to +30 V (common ground) Threshold: ~ +1.9 V Hysteresis: ~ 0.2 V (+1.9 to +2.1 V) |
| Logic Measurement | Measures the status (H or L) of the signal input to each channel |
| Pulse Measurement | |
| Measurement | Counts pulse signals input to each channel |
| Detection Cycle | 10 μs to 1 hr (set separately from analog signal sampling interval) |
| Maximum Pulse Input | Max. frequency: 100 kHz Max. count number: 15 M count (24-bit counter) |
| Measurement Modes | – Rotation: Counts pulses per cycle → converts to rpm Span: 0 to 500 M rpm/F.S. – Accumulating: Accumulates total pulses per cycle Span: 0 to 20 M count/F.S. (auto span) – Instant: Counts pulses per cycle Span: 0 to 20 M count/F.S. |
| *External Trigger Input (11) | Executes specified trigger action |
| *External Sampling Input (11) | Executes sampling of measurement signal with each external sampling signal Max. frequency: 100 kHz Time error: ≤ 1 μs |
| Output Signal | |
| Alarm Output | Open collector (pull-up to 5 V with 10 kΩ resistor) Max. load: 24 V / 100 mA |
| Trigger Output | When trigger is detected, outputs ~500 μs width pulse (Low active) |
GL980/2000-APS – Software Specifications
| Item | Description |
|---|---|
| Model name | GL980_2000-APS |
| *Supported OS (14) | Windows 10, 8.1, 8, 7 (SP1 or later) |
| Functions | Control GL980 and GL2000, Real-time data capture, Replay data, Data format conversion |
| Supported device | 1 unit of GL980 or GL2000 |
| Settings control | Input condition, Capturing condition, Trigger/Alarm condition, Other |
| Transfer of Captured Data | |
| In-memory capturing (GL2000) | Transfers captured data to PC sequentially while saving in built-in RAM of GL2000 • Sampling interval: 1 μs to 1 min |
| In real-time capturing | Transfers captured data to PC while saving in built-in flash memory, SD, or USB on GL2000 • Sampling interval: 1 ms to 1 min • Saved in GBD and CSV format |
| Displayed Information | Analog waveform, Logic waveform, Pulse count waveform, Digital values |
| Display Mode | Y-T waveform with digital values, Enlarged waveforms, Statistical calculation results and history, XY graph |
| File Operation | Converts data format to CSV from GBD binary (between cursors or all data) |
| Past Data Screen Function | Displays current or past data by switching (available at 1 kS/s to 1 S/m, i.e., 1 ms to 1 min sampling interval) |
| Statistical Calculation | Maximum, Minimum, Average, Peak-to-peak (p-p) during data capturing |
GL2000 – Battery Pack Specifications
| Item | Description |
|---|---|
| Capacity | 7.2 V, 2900 mAh |
| Battery operating time | • Approx. 3 hrs with LCD at max. brightness (displayed signal) • Approx. 5 hrs in screen saver mode (no display) *Condition: 1 sample/s, saving to built-in Flash, two fully charged batteries, 25 °C |
| Battery installation | Two battery packs installed in GL2000 |
| Charging method | Charging directly on GL2000 |
| Charging time | Approx. 10 hrs (for two batteries) |
| Other functions | • Automatic switchover to battery if AC power fails (AC adapter priority) • When battery voltage is low, measurement automatically stops after saving data to preserve accumulated results |
Humidity Sensor (B-530) Specifications
| Item | Description |
|---|---|
| Allowable temperature range | -25 to 80 ℃ |
| Allowable humidity range | 0 to 100 % RH |
| Relative humidity measurement accuracy | ±3 % RH (5 to 98 % RH at 25 ℃) |
| Measurement method | Capacitance method |
| Accuracy vs Temperature | <table><tr><th>Measurement Environment</th><th>Accuracy</th></tr><tr><td>0 – 10 ℃</td><td>±5 % RH</td></tr><tr><td>10 – 20 ℃</td><td>±4 % RH</td></tr><tr><td>20 – 30 ℃</td><td>±3 % RH</td></tr><tr><td>30 – 40 ℃</td><td>±4 % RH</td></tr><tr><td>40 – 50 ℃</td><td>±5 % RH</td></tr><tr><td>50 – 60 ℃</td><td>±6 % RH</td></tr><tr><td>60 – 70 ℃</td><td>±7 % RH</td></tr><tr><td>70 – 80 ℃</td><td>±8 % RH</td></tr></table> *Accuracy at ≥60 ℃ is reference value |
| Response time | Approx. 15 sec (90% response with membrane filter) |
| Sensor output | 0 to 1 V DC |
| External dimensions | Ø14 × 80 mm (excluding cable) |
| Cable length | 3 m |
| Power source | DC +5 to +16 V |
| Power consumption | Approx. 4 mA |

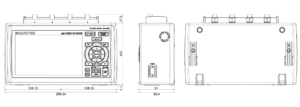

GL2000 External Dimensions with cover (rubber protector)
- Scale : mm
Tolerance : +/- 5 mm
GL2000 External Dimensions
- Scale : mm
Tolerance : +/- 3 mm
