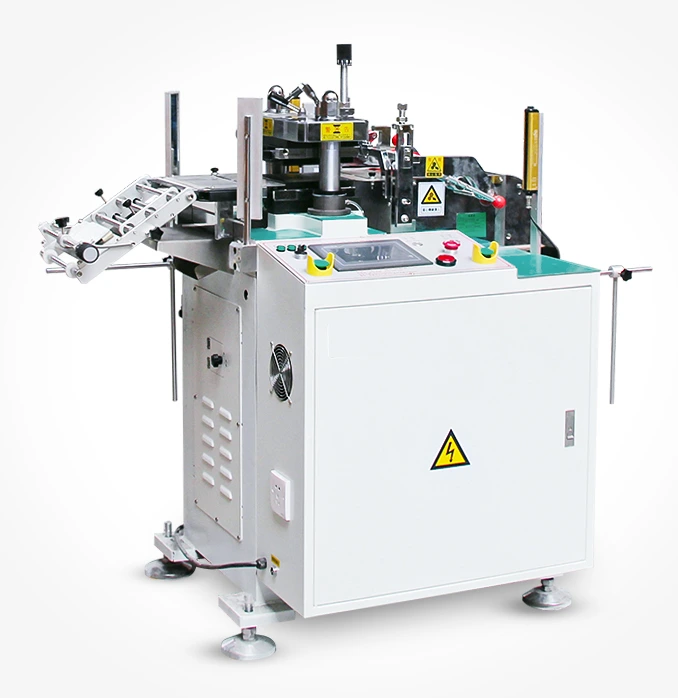

Battery Lab Electrode Die Cutter
Mesin pemotong cetakan ini digunakan untuk memotong dan membentuk pelat positif dan negatif baterai litium. Peralatan ini terdiri dari perangkat pengulur otomatis, perangkat koreksi otomatis, perangkat penempatan bagian kutub, perangkat pelubang bagian kutub, perangkat penggerak traksi, perangkat pengambilan produk jadi, perangkat pengumpul limbah otomatis, serta mekanisme lainnya
Produk Spesifikasi
| Model | 8054-HD |
| Machinne Size(W*D*H) | 980*2100*1720mm |
| Max. feed width | 350mm |
| Feeding step accuracy | ±0.1mm |
| Feeding control | Feeding speed and step distance are adjustable |
| Max. processing area | Automatic punching 340*280mm (manual punching 350*350mm) |
| Material roll diameter | 3 inches (inner diameter) |
| Roll weight | <50kg |
| Roll outer diameter | <400mm |
| Operating speed | 1000-9000 times/h, efficiency (12PCS/min) |
| Die thickness and size requirements | Thickness> 8mm |
| Life of the punching knife | 1-5 million times (depending on the quality of the knife and the accuracy of the adjustment) |
| Burr degree | <0.02 |
| Waste material recycling | Automatic waste material separation and recycling device |
| Operation mode | Automatic/Manual mode |
| Control system | Intelligent microcomputer control |
| Power | 3.6KW |
| Power supply | Single phase AC220V, 50Hz |
| Machine weight | 1500kg |
| Safety device | Infrared grating protection and safety shield |
