LogTag® UTREL-16F – Low Temperature Data Logger with External Probe

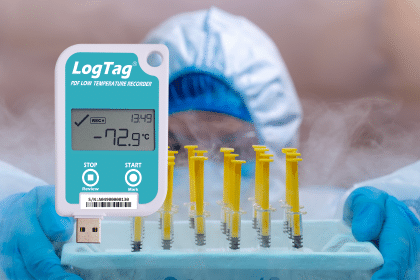

The LogTag® UTREL-16F is a high-performance temperature data logger designed for precise monitoring in low-temperature environments. Compatible with the ST10 external probe, this device is perfect for applications requiring external sensor placement, such as cold storage, pharmaceuticals, and laboratories.
Key Features:
-

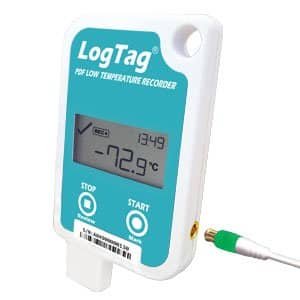

External Probe Compatibility: Works seamlessly with the ST10 external probe for accurate temperature measurements in hard-to-reach or sensitive locations.
-

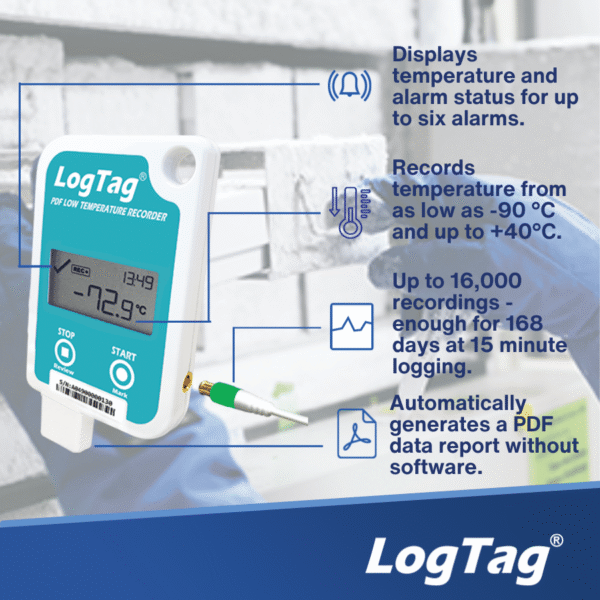

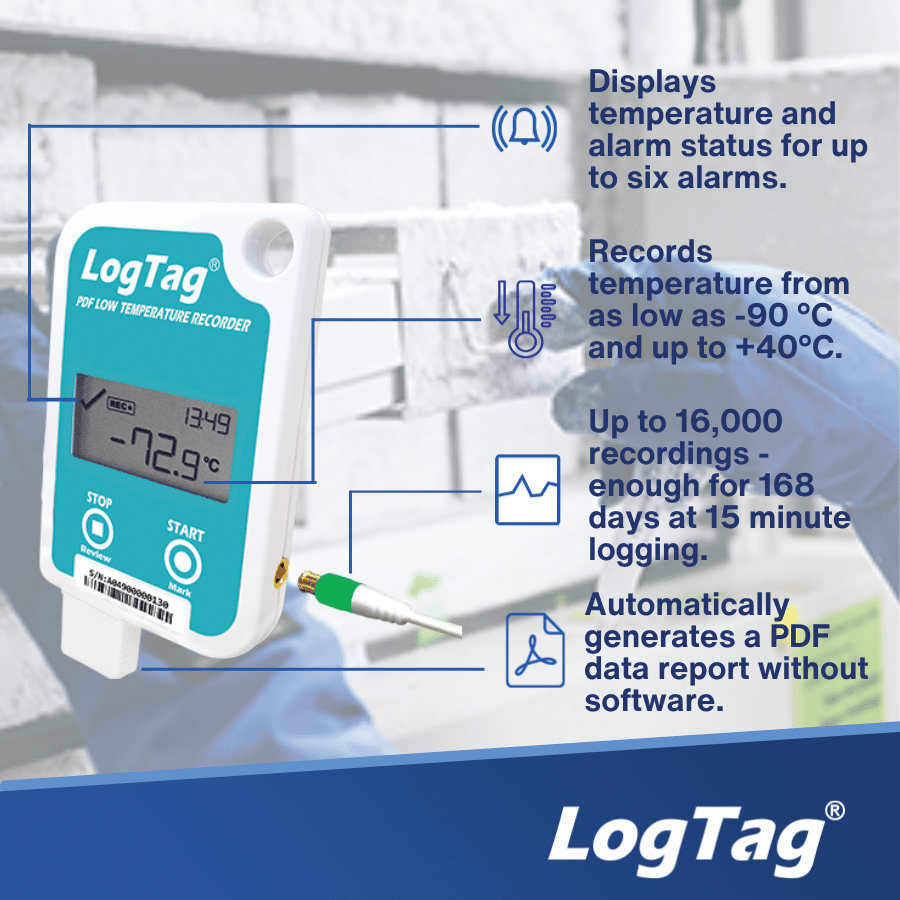

Clear LCD Display: Shows recording status, current temperature, alarm status (up to six configurable alarms), and duration of any temperature excursions for instant monitoring.
-

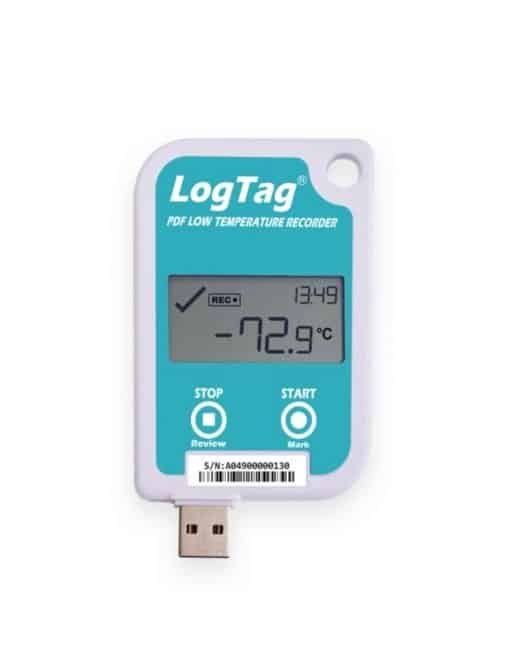

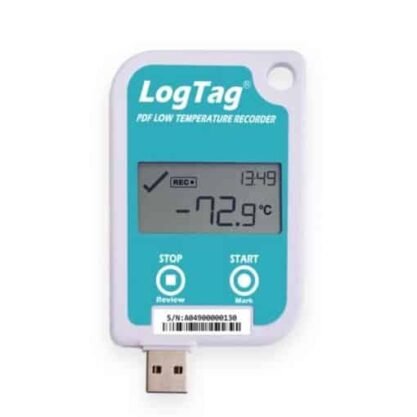

Integrated USB Connector: Easily connect the UTREL-16F to a computer via the built-in USB plug to generate detailed PDF reports automatically — no extra accessories or proprietary software required.
-
Advanced Data Analysis: Generates encrypted data files compatible with LogTag Analyzer® software for in-depth reporting and data management.
-
Recommended Buffering: For temperatures below -40ºC, use with silica sand in the buffer assembly (silica sand and buffer bottle sold separately).
-
Durable and Reliable: Ideal for cold chain logistics and temperature-sensitive storage applications.
Important Notes:
-
Buffer bottle and silica sand are not included with the logger.
-
The ST10M-15 external probe is designed for use with the buffer bottle for optimal performance in ultra-low temperatures.
LogTag® UTREL-16F – Low Temperature Data Logger with External Probe Compatibility
The LogTag® UTREL-16F is a highly accurate and reliable temperature data logger designed for low-temperature monitoring applications. Compatible with the ST10 external probe, this logger supports precise temperature measurement from -90°C to +40°C (-130°F to +104°F), making it ideal for sensitive cold storage, pharmaceutical, and laboratory environments.
Key Specifications:
-
Measurement Range: -90°C to +40°C (-130°F to +104°F)
-
Operating Temperature: -30°C to +60°C (-22°F to +140°F)
-
Storage Temperature: 0°C to +40°C (32°F to +104°F)
-
Resolution:
-
0.1°C (0.2°F) from -80°C to +10°C (-112°F to 50°F)
-
0.2°C (0.4°F) for 10°C to 20°C (50°F to 68°F) and -90°C to -80°C (-130°F to -112°F)
-
0.3°C (0.5°F) for 20°C to 30°C (68°F to 86°F)
-
0.5°C (0.9°F) for 30°C to 40°C (86°F to 104°F)
-
-
Accuracy:
-
±0.5°C from -20°C to +10°C (-4°F to 50°F)
-
±0.7°C for -50°C to -20°C (-58°F to -4°F) and +10°C to +30°C (50°F to 86°F)
-
±1.0°C for -80°C to -50°C (-112°F to -58°F) and +30°C to +40°C (86°F to 104°F)
-
±1.8°C for -90°C to -80°C (-130°F to -112°F)
-
-
Memory Capacity: 16,129 readings (up to 168 days at 15-minute logging)
-
Sampling Interval: Configurable from 30 seconds to 18 hours
-
Start Options: Push button or scheduled start with optional delay
-
Alarms: Three upper and three lower configurable alarms
-
Indicators: “REC” symbol on LCD to show recording status
-
Water Resistance: IP61 rating when mounted vertically or hung with USB dust cap
-
Battery: CR2450 3V LiMnO2 fixed battery with up to 2 years normal use
-
Data Download: USB 2.0 A-type plug; PDF report generated in under 30 seconds
-
Software Compatibility: LogTag Analyzer 3.1.9 or higher, PDF Reader
-
Languages Supported: English, Spanish, French, Russian, German
-
Size & Weight: 93mm x 54.5mm x 8.6mm; 39g
-
Case Material: Durable polycarbonate
Additional Features:
-
Displays real-time temperature, alarm status, and recording info on LCD
-
Generates detailed PDF reports automatically upon USB connection
-
Compatible with external ST10 probe for precise sensor placement
-
Recommended use with silica sand buffer for temperatures below -40°C (buffer and sand sold separately)
