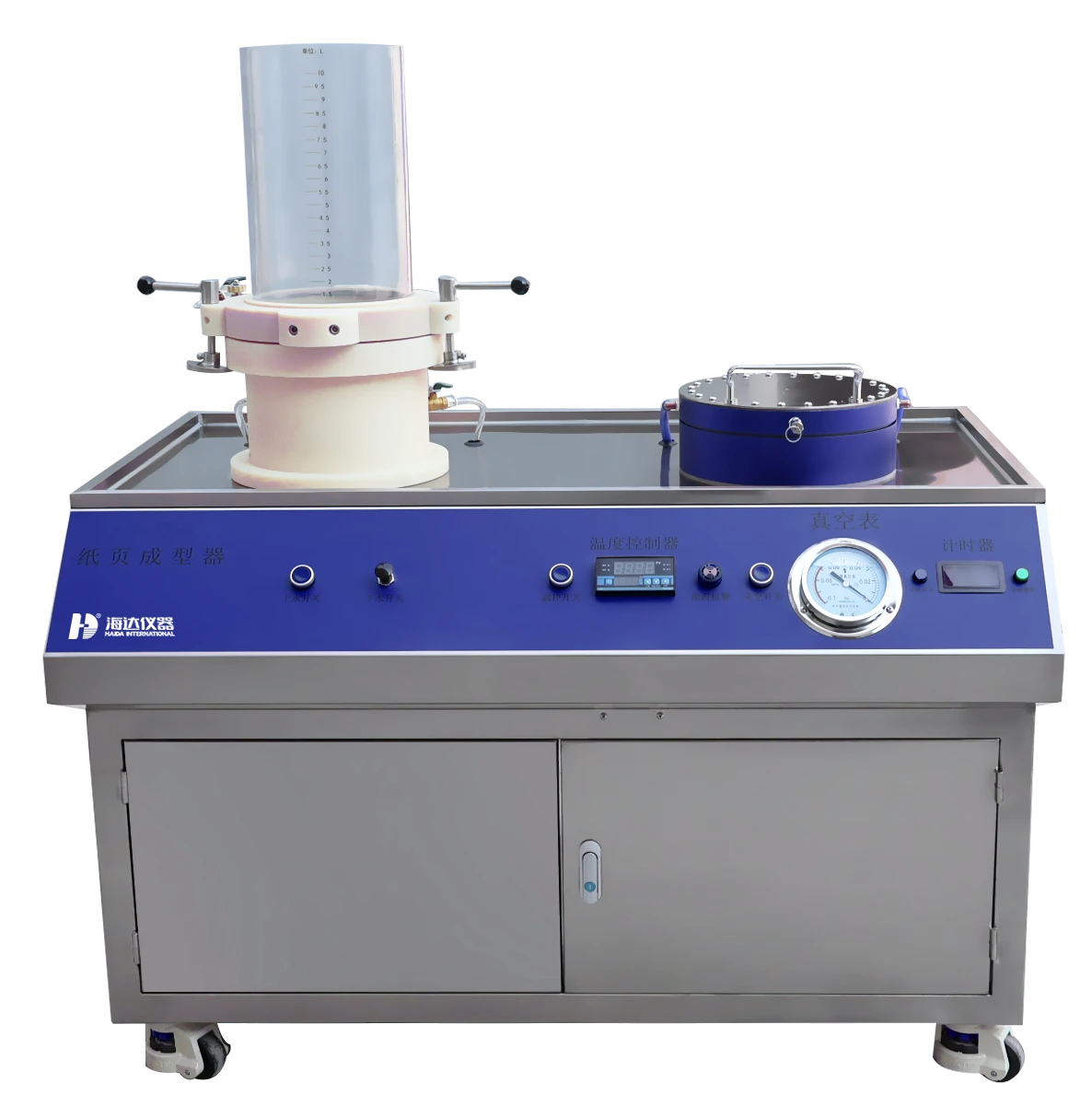

Sheet Former
Sheet Former adalah alat laboratorium yang digunakan untuk membentuk lembaran pulp standar (handsheet) dari suspensi serat guna keperluan pengujian fisik, mekanik, dan optik pada industri pulp dan kertas. Alat ini mensimulasikan proses pembentukan kertas dalam skala laboratorium dengan cara menyaring suspensi pulp melalui wire mesh sehingga menghasilkan lembaran uji yang seragam dan sesuai standar internasional. Sheet Former merupakan peralatan penting dalam penelitian, pengembangan produk, serta quality control industri kertas. usi serat yang merata pada seluruh permukaan lembaran. konsisten dan dapat diulang. kualitas kertas lainnya. control maupun penelitian dan pengembangan produk. yaratan standar internasional industri pulp dan kertas. serta laboratorium mengevaluasi kualitas pulp, mengembangkan produk kertas baru, dan memastikan hasil pengujian sesuai standar industri internasional.
Produk Spesifikasi
| Model | 5042-HD |
| The inner diameter of round type pulp storage container | ≥ 200mm |
| Water filtering copper mesh surface to water seal overflow edge | 800+5mm |
| Water filtering copper mesh pressure hole | (80 .100) optional (nano-fiber using the way of the tray network + filter paper) |
| Copper mesh clip material | 304 stainless steel Copper mesh material: paper special phosphorus copper mesh |
| Volt weight | 13kg hand-copied paper sheet pressure of 400kpa (volt roller press can increase the smoothness and uniformity of the paper) |
| Diameter of hand-copied paper sheet | ∮200mm |
| Vacuum pump vacuum degree | -0.092~-0.098MPa |
| Vacuum pressing force | ≈0.1MPa |
| Drying station | 1 (2 or more stations can be optioned) |
| Drying temperature | ≤140℃ Digital arbitrary setting |
| Drying plate release mode | Natural release (with self-absorbing function automatically absorbing after pressing together) |
| Drying time (quantitative 10-85g/m2) | 3-6 minutes The drying time will be different for different fiber types with different moisture content of paper samples |
| Heating power | 2.5KW |
| Paper thickness range | 10-200g/m2 0.05-3mm (different gram weight and thickness range of fiber types differ) |
| Seal ring material | silicone |
| Water way | bottom water. The upper end of the water |
| Drainage method | Pneumatic water release |
