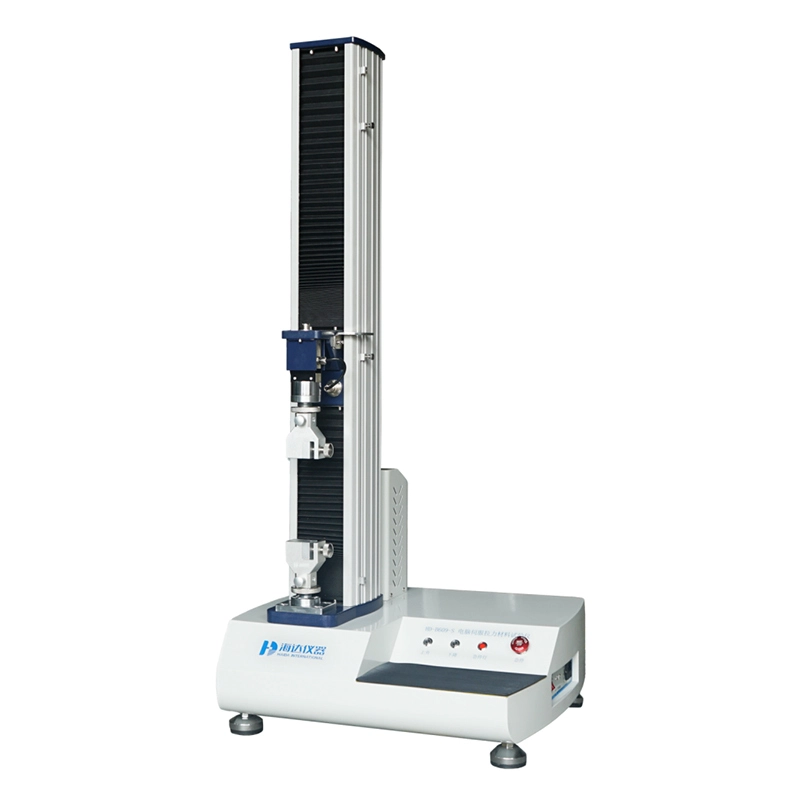

Sanitary Hose Tensile Test Machine 5067-HD
Sanitary Hose Tensile Test Machine adalah alat pengujian yang digunakan untuk mengukur kekuatan tarik (tensile strength) dan ketahanan sambungan pada selang sanitari. Pengujian ini bertujuan untuk mengevaluasi kemampuan selang dan konektornya dalam menahan gaya tarik tertentu tanpa mengalami kerusakan, deformasi permanen, atau kegagalan sambungan, sehingga kualitas dan keamanan produk dapat terjamin.
Dilengkapi dengan sistem penggerak presisi, sensor gaya berakurasi tinggi, fixture penjepit khusus, serta perangkat akuisisi data otomatis, Sanitary Hose Tensile Test Machine mampu menghasilkan hasil pengujian yang akurat, konsisten, dan dapat diulang. Alat ini banyak digunakan dalam industri sanitary ware, manufaktur selang fleksibel, laboratorium kontrol kualitas, dan pusat penelitian untuk memastikan produk memenuhi standar kinerja, daya tahan, dan keselamatan yang berlaku.
Spesifikasi Produk
| Model | 5067-HD |
| Capacity of Load Sensor | 0-200kg |
| Unit switching | Kg, N, Lb (freely switchable) |
| Load analysis degree | 1/250,000 |
| Load accuracy | ±0.2% |
| Displacement switching | mm, cm, in; |
| Force measurement display accuracy | 0.001Kg |
| Displacement measurement display accuracy | 0.001mm |
| Test stroke | 2000mm |
| Speed test range | 0.05-500mm/min, stepless speed regulation |
| Transmission system | Servo motor,imported ball screw, and computer software YDL are adopted |
| Safety devices | Overload emergency stop device, upper and lower travel limit device, automatic stop function at breakpoint |
| Test fixtures | Customize a set of four-point bending fixtures according to the customer’s products |
| Accessory configuration | Including desktop industrial computer |
| Working power supply | 220V 50HZ |
| Working power | 0.75KW |
| Overall weight of the machine | Approximately 180kg |
| Operating Mode | Computer-controlled, it adopts the windows working platform. The clear hierarchical operation mode, along with detailed help documents and prompts, makes it the simplest and most user-friendly software in the current testing machine industry. |
| Software feature | It adopts multi-threaded parallel processing technology. During the testing process, the force-displacement, force-time, displacement-time, stress-strain and other curves are displayed simultaneously in real time. Users can switch to the desired curve screen at will and view user Settings, etc. The industry-innovative Microsoft Word report format is simple and easy to use. As long as you know how to use Word, you can edit the exquisite reports you want. |
