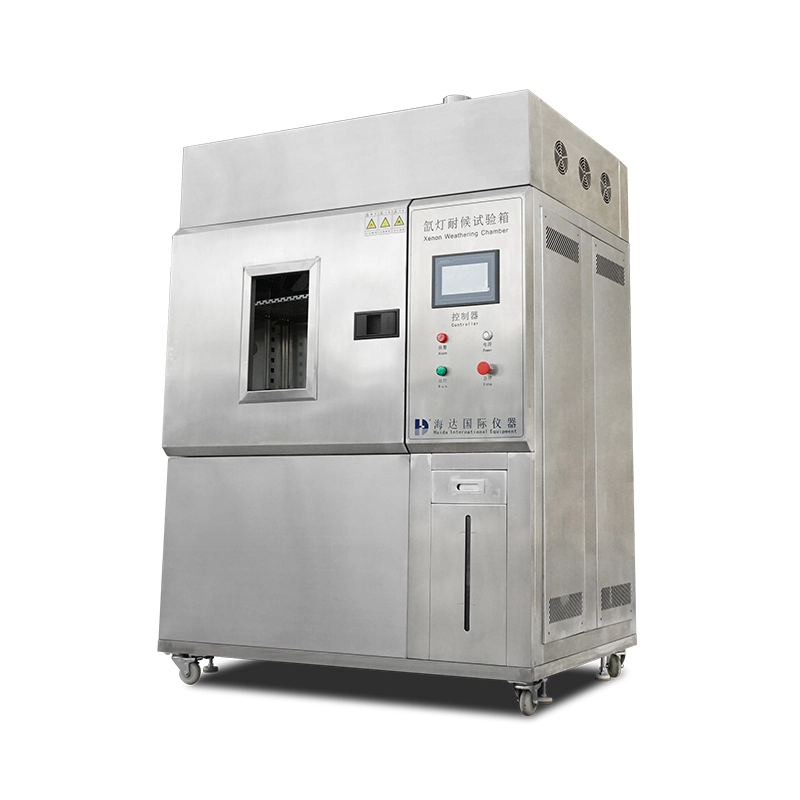

Xenon Arc Aging Test Chamber
Xenon Arc Aging Test Chamber adalah ruang uji penuaan dipercepat (accelerated weathering test chamber) yang menggunakan lampu xenon arc untuk mensimulasikan spektrum penuh sinar matahari, termasuk radiasi ultraviolet (UV), cahaya tampak, dan inframerah (IR). Peralatan ini dirancang untuk mengevaluasi ketahanan material terhadap pengaruh lingkungan seperti sinar matahari, suhu, kelembapan, dan hujan dalam waktu yang jauh lebih singkat dibandingkan paparan alami di luar ruangan. Chamber ini banyak digunakan untuk menguji perubahan warna, retak, kapur (chalking), degradasi permukaan, dan penurunan sifat mekanis material.
Spesifikasi Produk
| Item | Specification |
| Internal Dimension (W*D*H) | 700*500*600mm |
| External Dimension (W*D*H) | 1350*1300*1850mm |
| Internal chamber material | SUS 304 # Stainless Steel, anti-rust |
| External chamber material | Cold-rolled steel with spray |
| Chamber humidity range | 55%~90% RH |
| Chamber temperature | 35℃~90℃ |
| Black panel temperature | 45℃~95℃, adjustable |
| Temperature uniformity | ≤±3℃ |
| Filter | Window glass filter / daylight filter |
| Light source | Air cooled long arc xenon lamp |
| Xenon lamp power | 1.8 KW * 3 pcs = 5.4 KW |
| Irradiance strength | 0.51 W/m2@340 nm(follow up to specified test standard) |
| Control system | LCD programmable controller,
Auto display irradiance, capacity: 100 groups program, 99 cycles. |
| Illumination time | 1~999 hours, adjustable |
| Water spray system | Water spray time 999 minutes settable
Interval spray time, 1~240 minutes settable |
| Sample holder | Stainless steel, 1 pc |
| Distance from sample
holder to lamp |
250~300 mm |
| Heating | Nickel-chromium alloy electric heater |
| Humidification power | Stainless steel surface evaporative humidifier |
| Insulation materials | Supper fine glass fiber |
| Temperature sensor | PT100 high precision sensor |
| Air circulation system | Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity |
