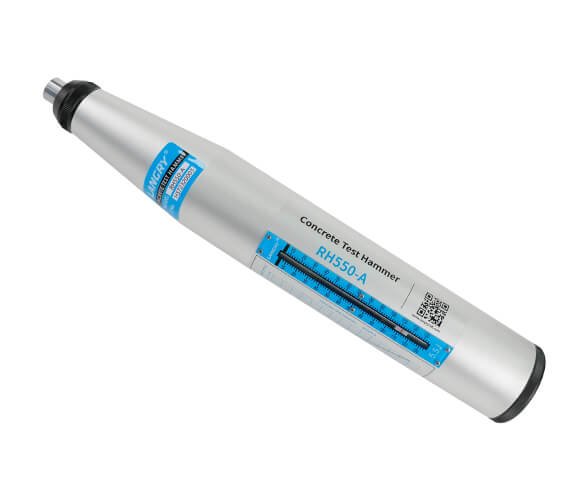

The RH550-A Concrete Test Hammer is expertly crafted for evaluating the compressive strength of concrete in demanding construction environments. Designed to measure strength ranging from 60 to 80 MPa, this robust instrument is essential for high-rise buildings, bridges, and other major infrastructure projects. Its high-strength components ensure durability, while intuitive labels and scales facilitate easy readings. With a powerful impact energy of 5.5J, the RH550-A provides reliable and efficient testing, making it a trusted tool for professionals in the field.
Product Features
-
Chrome-plated pointer allows for precise friction adjustments and enhances stability during testing.
-
High-strength construction guarantees exceptional wear resistance for a longer operational lifespan.
-
User-friendly scale and labels simplify the reading process for quick and accurate assessments.
-
Lightweight design ensures easy handling and portability, ideal for various job site applications
Product Specifications Overview
NameTechnical indicatorsStandard impact energy5.500J
Pointer length
20.0±0.2mm
Friction of pointer
0.65±0.15N
Spherical radius of bouncing rod18±1.0mm
Elastic tension spring stiffness
1100±50N/m
Operating length of elastic tension spring
86±0.5mm
Bounce hammer take-off position
Scale”0-1”
Calibration value on testing anvil
83±1
