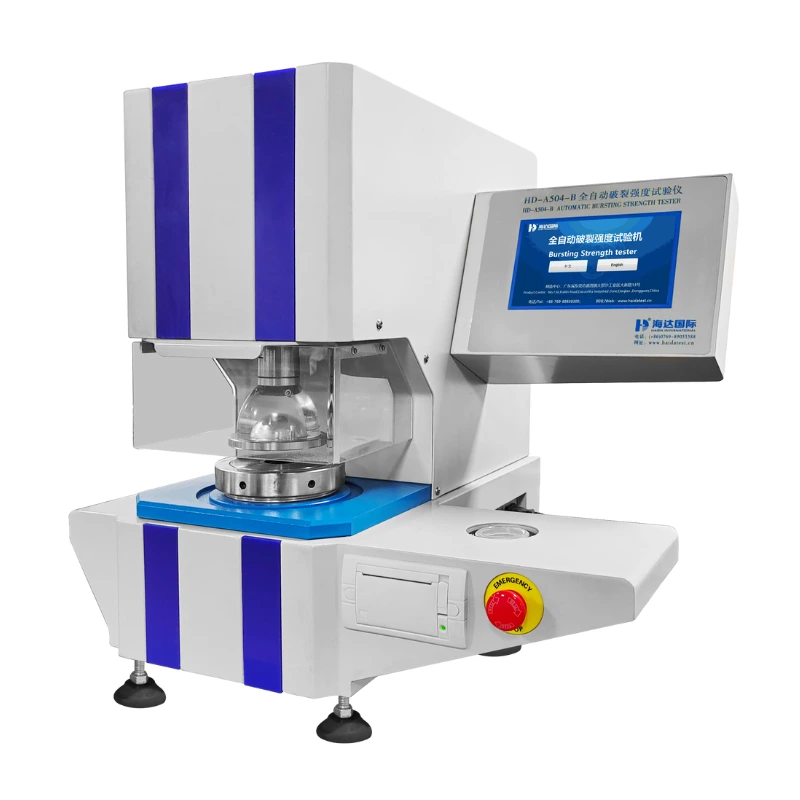

PLC Control Bursting Strength Tester
Alat Uji Kekuatan Pecah dengan Kontrol PLC. Alat ini cocok untuk menguji kertas, kertas kemasan, karton, karton bergelombang, dan bahan lembaran sejenis lainnya, sesuai dengan standar yang berlaku.
Standar Desain
- TAPPI T403 – Metode pengujian kekuatan pecah (Bursting Strength) pada kertas.
- ISO 2758 – Standar internasional untuk penentuan kekuatan pecah pada kertas.
- JIS P8112 – Standar Jepang untuk pengujian kekuatan pecah kertas.
Spesifikasi Produk
| Item | Paperboard | Paper |
| Capacity | High pressure- 5~45kgf/cm^2(4500kpa) | Low pressure-0~12kgf/cm^2(1200kpa) |
| Clamping Force | 600~1200 KPа | |
| Unit | kPa, Lbs/in², kgf/cm² | |
| Resolution | 0.1kPa | |
| Sensing Method | Pressure Transmitter | |
| Operation Method | Touch screen control | |
| Ring Material | Stainless Steel SUS304 | |
| Inner Diameter of Clamp Ring | Upper clamp ring: Φ31.5±0.1mm | Upper clamp ring: Φ30.5±0.1mm |
| Lower clamp ring: Φ31.5±0.1mm | Lower clamp ring: Φ33.1±0.1mm | |
| Maximum Stroke | 25mm (without clamp) | |
| Pressurization Speed | 170±15ml/min | 90±5ml/min |
| Dimension (L×W×H) | 400mmx400mmx760mm (approx.) | |
| Weight | Appro. 50kg | |
| Power | Single-phase, 220V, 60 Hz | |
| Hydraulic Oil | 100% silicone oil | |
| Required Air Source | ≥0.6Mpa (provide by customer self) | |
| Accessories | One piece higher pressure rubber film, | One piece lower pressure rubber film, |
| One piece wrench, | One piece wrench, | |
| 10 pieces higher pressure correction sheet, | 10 pieces lower pressure correction sheet, | |
| One bottle silicon oil, | One bottle silicon oil, | |
| One piece English user manual | One piece English user manual | |
