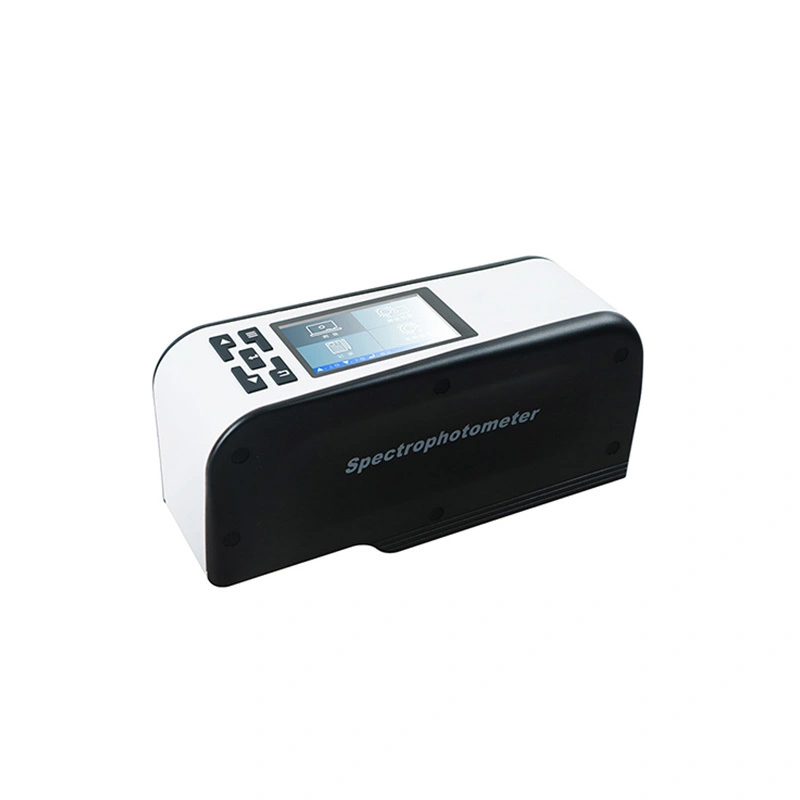

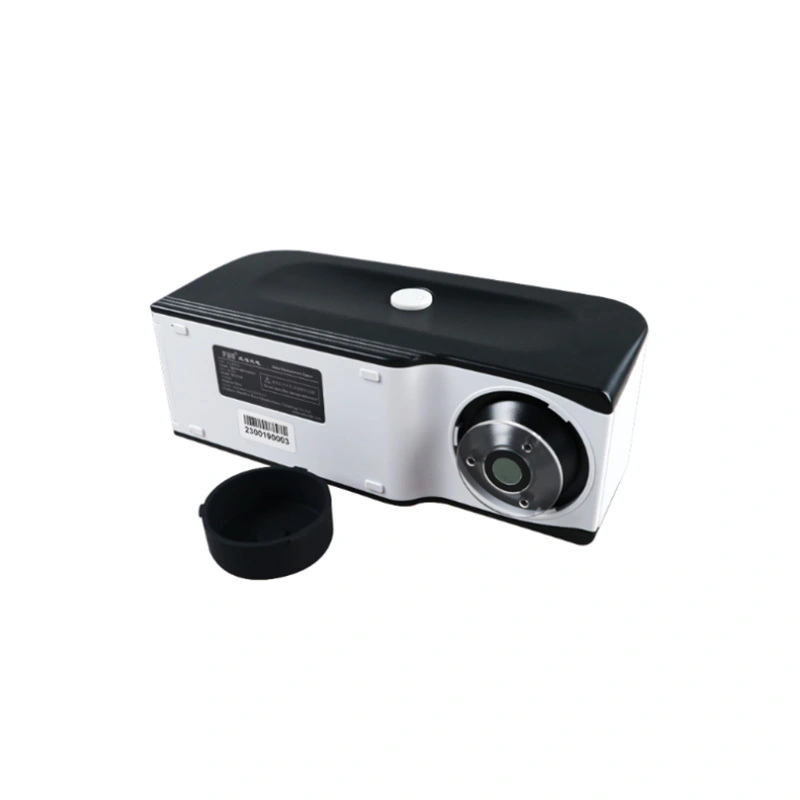

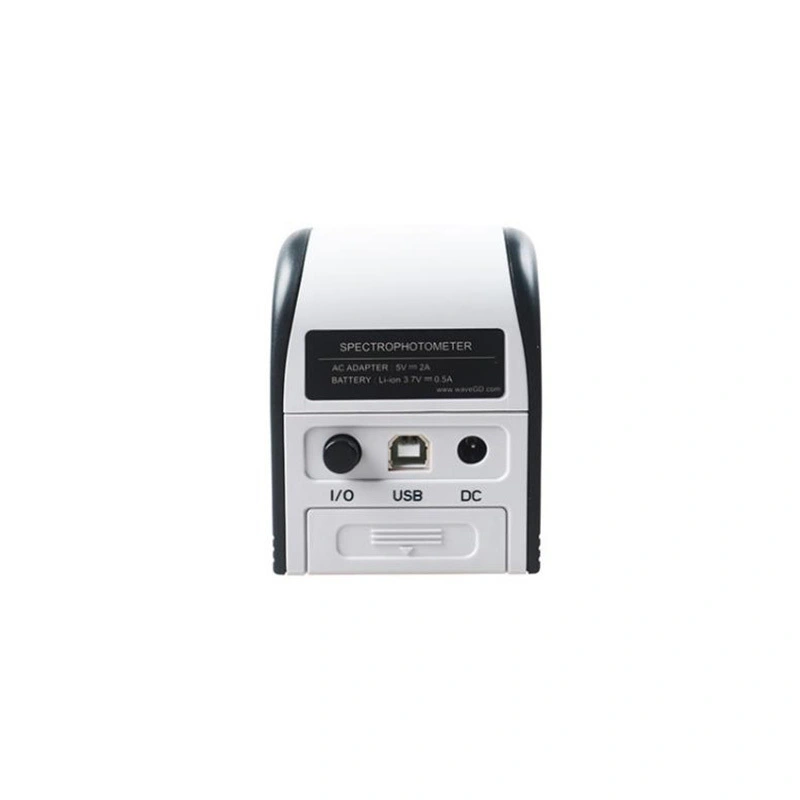

PaperColour Measuremen Spectrophotometer
(HD-G817-3)
Spektrofotometer ini dikembangkan berdasarkan standar-standar yang relevan dari Komisi Pencahayaan Internasional (CIE), serta standar nasional untuk penelitian dan pengembangan (R&D) serta produksi spektrofotometer profesional. Menggunakan komponen-komponen utama yang baru diimpor, dirancang dengan baik, memiliki pengoperasian yang akurat dan andal, mudah dipahami, ekonomis, serta praktis, dan sebagainya.
Spektrofotometer ini digunakan untuk pengendalian kualitas warna, pengendalian perbedaan warna, analisis perbedaan warna, pengujian sampel, dan pengujian secara real-time pada berbagai industri seperti tekstil, percetakan dan pewarnaan, pakaian jadi, alas kaki, kulit, kimia, plastik, pigmen, cat, tinta, percetakan, logam, fotografi, dan mainan, serta sebagai alat bantu pencocokan warna selama proses seperti injeksi, pengaplikasian tinta, pengecatan, dan pelapisan semprot, dan sebagainya.
Spesifikasi Produk
| Model | Switchable Caliber |
| Geometric Conditions | CIE Recommended lighting reception method : d/8 |
| Color Space | CIEL*a*b*,CIEL*C*h,CIEL*u*v*,CIEXYZ,Yxy,Reflectivity,CMYK,YI,Yellowness,Ganz,R457 Whiteness,Taube,Whiteness,z Whiteness,sRGB |
| Standard Light
Source |
A,C,D50,D65,D75,F1,F2(CWF),F3,F4,F5,F6,F7,F8,F9,F10,F11(TL84) F12(U30) |
| Light Source | Combinatorial LED |
| Color Diff. Formula | △E*ab,△E*Ch,△E*uv, △E*Hunter,△E*cmc(2:1),△E*cmc(1:1),△E*94,△E*00,△E*sRGB,△E*BFD,△E*FMCII |
| Measuring Caliber | Facula 8mm(Caliber Φ11mm) / Facula 4mm(Caliber Φ6mm) Switchable、 Φ16mm optional |
| SCI/SCE | SCI/SCE |
| Sensor Array | Line array CMOS@256 pixels |
| Spectral Way | Concave diffraction grating |
| Observer | CIE10°(1964)、CIE2°(1931) |
| Wavelength coverage | 400nm~700nm |
| Wavelength interval | 10nm |
| Measuring interval | 2.5 Second
Reflectance range |
| Reflectance range | 0%-200% |
| Repeated accuracy | △E＜0.07 （take the deviation average after 30 times measuring the whiteboard， 10 Second interval） |
| Table Difference | △E＜0.4(Measure the RAL 12-color blocks) |
| Light source life | More than 50,000 hours |
| Battery power | Measuring more than 10000 times |
| Display screen | TFT true color 2.8inch@(16:9) |
| Data storage capacity | Storage Standard 100 groups, Sample 16,000 groups |
| Operating temperature
temperature |
0℃-40℃(32℉-104℉) |
| Storage temperature | -20℃-50℃(-4℉-122℉) |
| Working humidity | Relative humidity less than 85%,without condensation |
| Weight | 340g |
| Size | 180x76x60mm |
| Size of exterior package
package |
400x240x340mm |
| Standard accessories | Power adapter, standard white board, standard black cavity, lithium battery, specification, PC software |
| Optional accessories | Software(Advanced Version), Micro printer, Locating block |
