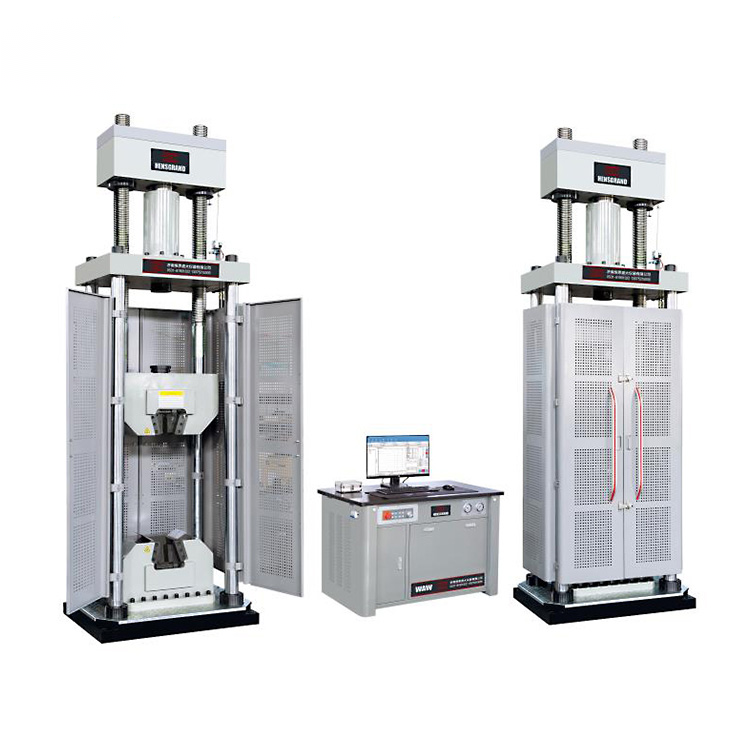

WAW-3000A/4000A/5000A Microcomputer Control Strain Stress Controlled hydraulic universal testing machine
Aplikasi
Mesin Uji Universal Hidraulik WAW-3000A/4000A/5000A sangat cocok untuk pengujian tarik, tekan, tekuk/lentur, dan geser berkapasitas tinggi.
Mesin ini memenuhi persyaratan yang berlaku sesuai standar BS, EN, ISO, ASTM, JIS, dan berbagai metode pengujian lainnya.
Specifications
| Model | HST WAW-3000A | HST WAW-4000A | HST WAW-5000A |
| Control Way | Constant stress uniform deformation constant displacement three closed loop control and program control dealing | ||
| Max. Load(kN) | 3000 | 4000 | 5000 |
| Load accuracy | Class 1 | ||
| Load range | 2%～100%F·S | ||
| Load resolution | Capacity/300, 000 (fully auto scaling of single measurement | ||
| Deformation Measurement Range | 2%~100%FS | ||
| Stroke | 250mm | 300mm | 300mm |
| Test speed(mm/min) | 0-80 | ||
| Max. Tension Test Space (mm) | 800 | 1000 | 1000 |
| Nominal maximum specimen sizes Diamater(mm) | Φ20~Φ50,Φ50~Φ80, Φ80~Φ110 | Φ20~Φ50,Φ50~Φ80, Φ80~Φ110 | Φ20~Φ50,Φ50~Φ80, Φ80~Φ110 |
| Nominal maximum specimen sizes Thickness(mm) | 5~50, 50~100 | 5~50, 50~100 | 5~50, 50~100 |
| Column Effective Spacing(mm) | 600 | 800 | 800 |
