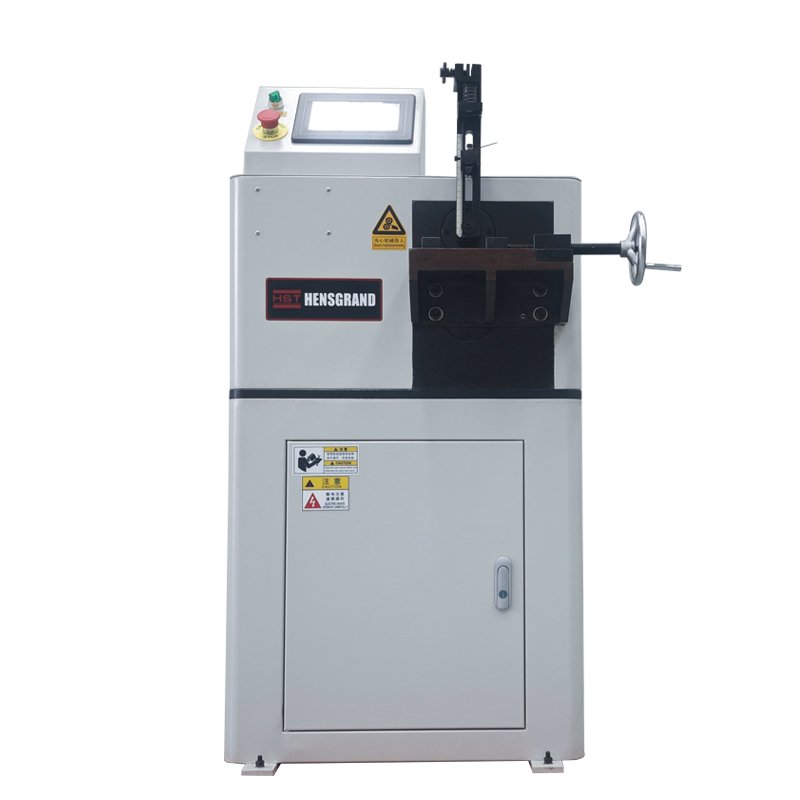

HST JWJ-13 13mm Electric metal wire repeated bending test machine
Aplikasi
Mesin HST-JWJ13 Electric Metal Wire Repeated Bending Testing Machine terutama digunakan untuk melakukan pengujian tekuk berulang (repeated bending test) pada kawat logam (metal wire) serta menguji kemampuan material dalam menahan deformasi plastis dan mendeteksi cacat yang terjadi selama proses pembengkokan kawat secara berulang.
Mesin ini dilengkapi dengan layar tampilan digital yang dapat menampilkan jumlah siklus pembengkokan secara langsung. Selain itu, dengan menggunakan sheet clamping device, alat ini juga dapat digunakan untuk melakukan pengujian tekuk pada material lembaran logam (sheet metal bending test).
Peralatan ini banyak digunakan dalam laboratorium pengujian material, industri kawat baja, manufaktur logam, dan penelitian material untuk mengevaluasi kualitas serta ketahanan produk kawat.
| Parameter | Spesifikasi |
|---|---|
| Model | HST-JWJ13 |
| Diameter Sampel | Φ1 – Φ12.5 mm |
| Panjang Sampel | 150 – 200 mm |
| Sudut Pembengkokan | ±90° |
| Kecepatan Tekuk | ≤60 kali/menit |
| Rentang Penghitungan | 0 – 9999 kali |
| Daya Motor | 1.1 kW |
| Dimensi Mesin | 1200 × 730 × 410 mm |
| Berat Mesin | Sekitar 250 kg |
Application
The HST-JWJ13 Electric Metal Wire Repeated Bending Testing Machine is mainly used for repeated bending tests of metal wires and for evaluating the material performance and defects caused by plastic deformation during repeated wire bending processes.
The machine is equipped with a digital display screen that shows the bending cycle count in real time. It can also perform sheet metal bending tests by using an additional sheet clamping device.
This equipment is widely used in material testing laboratories, steel wire manufacturing industries, metal processing industries, and research institutions to evaluate wire quality, flexibility, and bending fatigue resistance.
| Item | Parameters |
|---|---|
| Model | HST-JWJ13 |
| Sample Diameter | Φ1 – Φ12.5 mm |
| Sample Length | 150 – 200 mm |
| Bending Angle | ±90° |
| Bending Speed | ≤60 times/min |
| Numeration Range | 0 – 9999 times |
| Motor Power | 1.1 kW |
| External Dimensions | 1200 × 730 × 410 mm |
| Tester Weight | About 250 kg |
