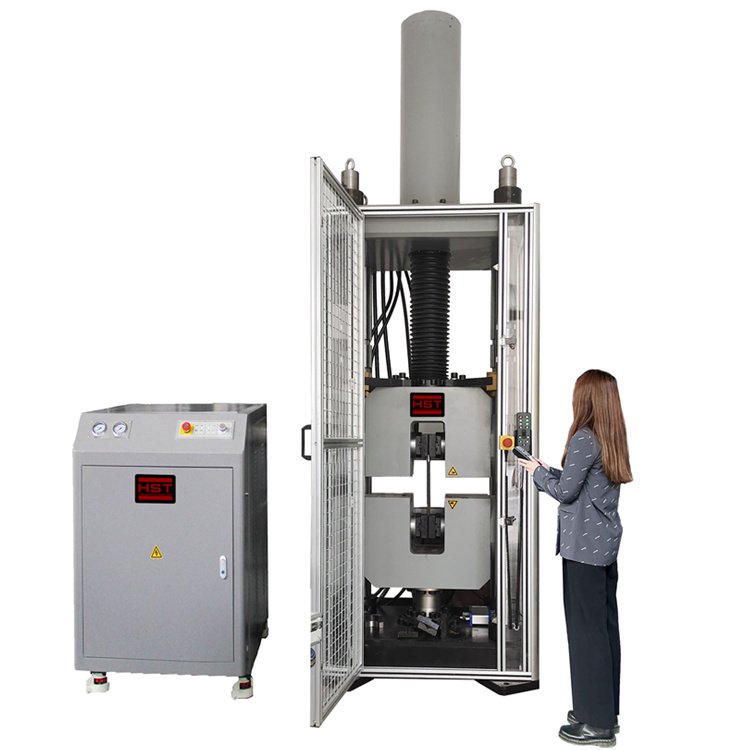

WAW-J Electro-hydraulic ServoRebar Tension Testing Machine
Aplikasi :
Mesin uji serbaguna seri WAW-J dirancang dengan ruang kerja tunggal. Mesin ini mampu melakukan uji tarik, tekan, lentur, dan geser. Pengukuran gaya dilakukan melalui Load Cell. Dengan stroke aktuator yang panjang, mesin ini cocok untuk menguji spesimen standar, spesimen berukuran panjang, dan spesimen dengan perpanjangan yang besar.

Standar:
ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221, ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
Spesifikasi Produk :
| Model | HST-WAW300J | HST-WAW600J | HST-WAW1000J | HST-WAW200J | HST-WAW3000J |
| Max. Load capacity(kN) | 300 | 600 | 1000 | 2000 | 3000 |
| Structure | Four column | ||||
| Load resolution | Capacity/500, 000FS | ||||
| Accuracy of testing load(%) | Classe 0.5 dal 0.5% del fondo scala ISO-7500±0.5 | ||||
| Overloadprotection | 130%Overload protection (no deformation, no mechanical damage) | ||||
| Accuracy of deformation(%) | ±0.5 | ||||
| Test Range | 1%-100% | ||||
| Deformation measurement range | 1%-100% | ||||
| Resolution of displacement(mm) | 0.01 | ||||
| Posion rising speed(mm/min) | 0-200 | 0-200 | 0-200 | 0-100 | 0-100 |
| Test Force Loading Rate Range | 0.02%-2%FS/s | ||||
| Max. Tensile space(mm) | 700 | 700 | 750 | 830 | 850 |
| Max. Compression space(mm) | 550 | 550 | 600 | 680 | 650 |
| Actuator stroke(mm) | 650 | 650 | 700 | 750 | 650 |
| Distance between columns(mm) | 580 | 580 | 680 | 780 | 840 |
| Clamping method | Hydraulic Automatic Clamp With side action grip | ||||
| Round insert(mm) | Ф13-Ф26;
Ф26-Ф40 |
Ф13-Ф26;
Ф26-Ф40 |
Ф13-Ф26;
Ф26-Ф45 |
Ф15-Ф40;
Ф40-Ф70 |
Ф15-Ф30;
Ф30-Ф50;Ф50-Ф80 |
| Flat insert(mm) | 0-15, 15-30
15-30 |
0-15, 15-30
15-30 |
0-20,20-40 | 10-40;40-70 | 10-40;40-80
40-70 |
| Compression Platens(mm) | Ф160 | ||||
| Power supply | 3-phase-380V-50Hz | ||||
