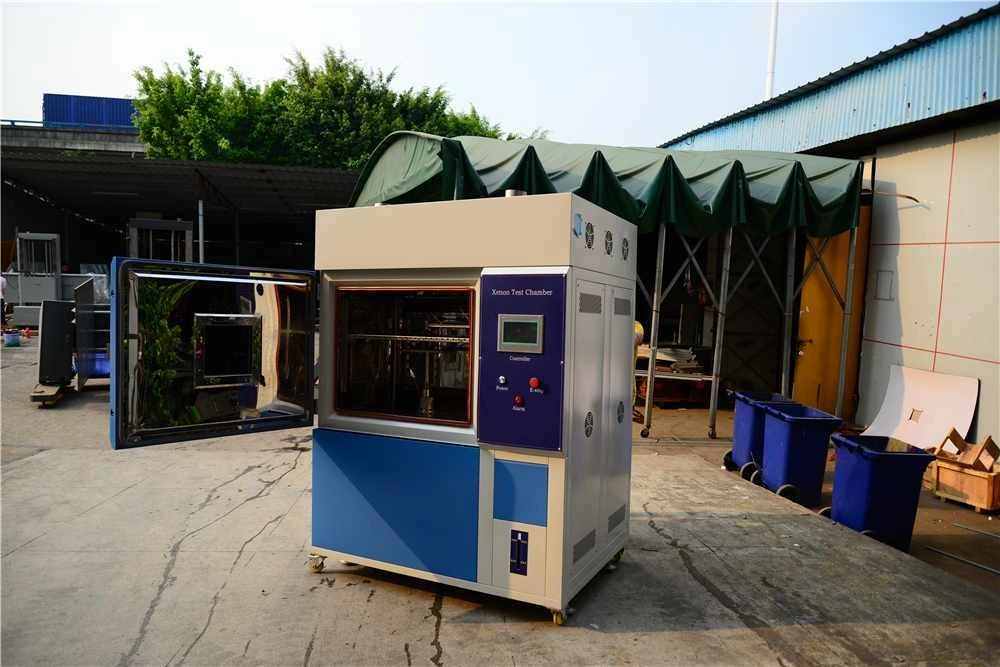

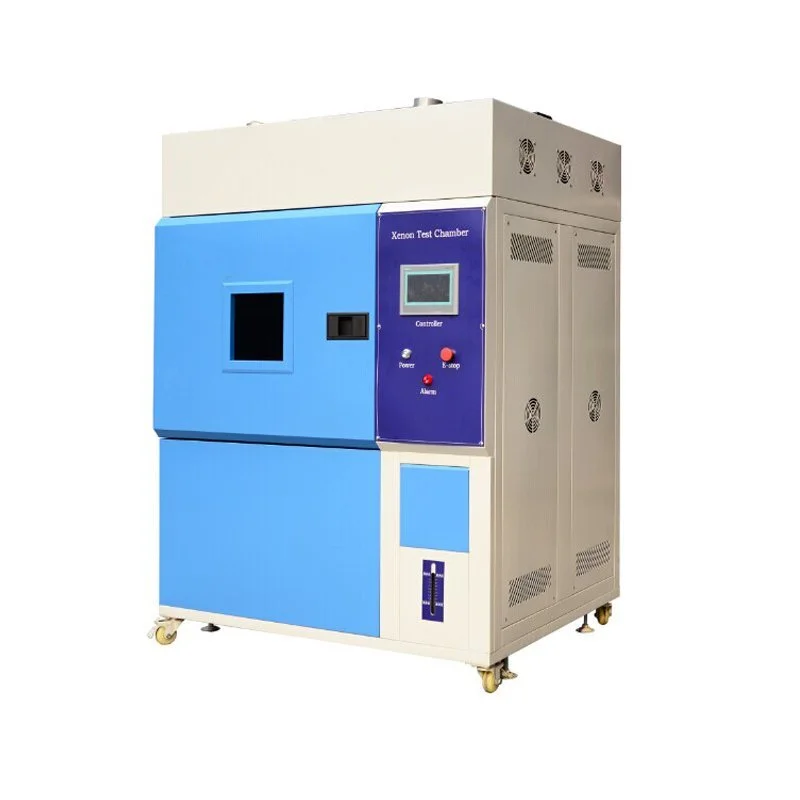

Led Xenon Aging Test Machine
Mesin Uji Penuaan LED Xenon dapat mensimulasikan spektrum sinar matahari penuh dari lampu busur xenon untuk mereproduksi gelombang cahaya yang merusak dari berbagai lingkungan, guna mendukung penelitian ilmiah, pengembangan produk, dan pengendalian mutu dengan menyediakan simulasi lingkungan dan uji percepatan yang sesuai, terutama untuk seri lampu LED seperti lampu tenaga surya, lampu taman, lampu tertanam, lampu terowongan, lampu mobil, lampu air mancur, serta lampu pajangan, dan sebagainya.
Spesifikasi Produk
| Item | Specification |
| Internal Dimension (W*D*H) | 800*800*800mm |
| External Dimension (W*D*H) | 1450*1500*2000mm |
| Inner chamber material | SUS 304 # Stainless Steel, Anti-rust, easy to clean |
| Outer chamber material | Stainless steel |
| Chamber Temperature | 40±3℃ |
| Temperature Uniformity | ≤3℃ |
| Blank panel temperature | 65±3℃ |
| Humidity Range | 55%-90% |
| Irradiated intensity | 0.35±0.02w/m²at 340nm (within±10%) |
| Xenon lamp power | 6.KW water-cooled xenon lamp x 1pc |
| Control system | Siemens PLC controller, auto display irradiance |
| Distance from specimen to arc center | 250~300mm, Effective exposure area 6400cm2 |
| Filter | Borosilicate filter inside and outside |
| Water pressure at nozzle | 1 – 1.5 bar |
| Sample rack | Stainless steel rotary sample rack, 3-7rpm |
| Door seal | Silicone rubber seal |
| Temperature sensor | PT100 high precision temperature sensor |
| Air circulation system | Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity |
| Cooling ventilator | Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system |
| Cooling ventilator | France Tecumseh compressor |
| Power | AC380V, 50Hz, three phase |
| Safety Protection | Over heat protection for fan, Over load protection for cooling system, Over pressure protection for cooling system, Over temperature protection, Over heat and over flow protection for water pump, Leakage protection, Water shortage protection, Auto stop after failure warning |
