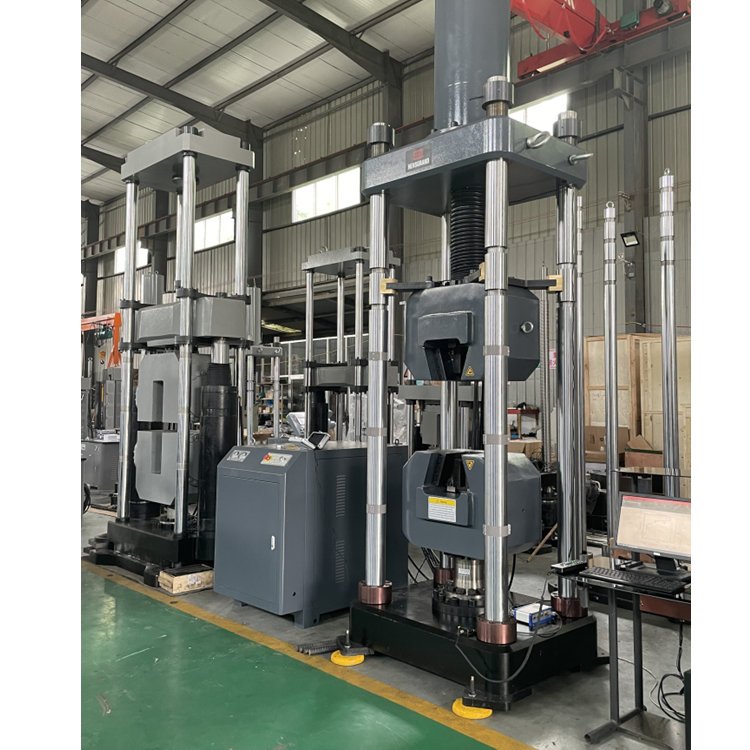

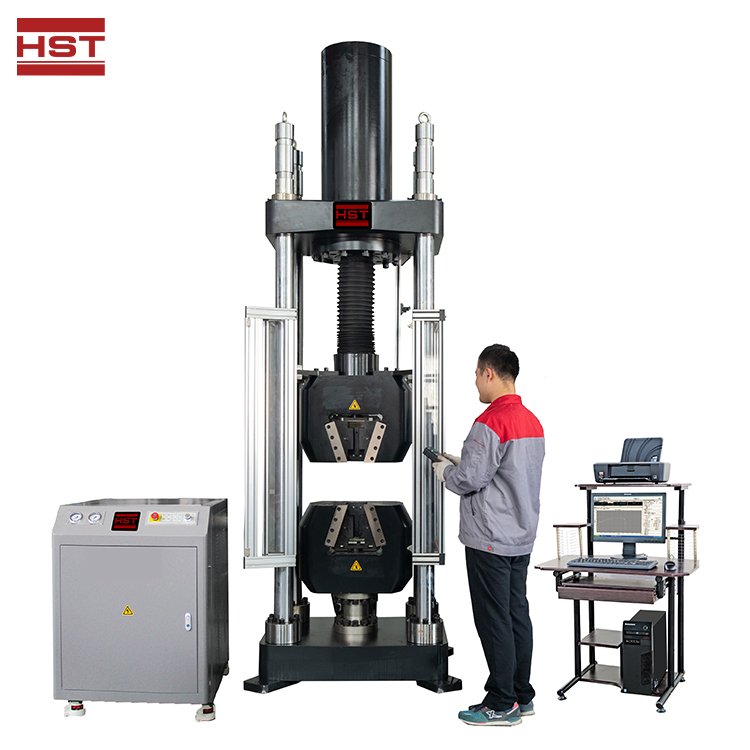

WAW-F Electro-hydraulic Servo Strength Testing Machine(200Ton, 300Ton)
Aplikasi
Mesin Uji Universal Seri WAW-F dirancang dengan ruang kerja tunggal. Mesin ini mampu melakukan uji tarik, tekan, lentur, dan geser. Pengukuran gaya dilakukan melalui Load Cell. Dengan stroke aktuator yang panjang, mesin ini cocok untuk menguji spesimen standar, spesimen berukuran panjang, dan spesimen dengan perpanjangan yang besar.
Standar:
ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221, ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
Spesifikasi Produk :
| Model | HST-WAW200F | HST-WAW3000F |
| Structure | Four column | |
| Max. Load capacity | 2000kN | 3000kN |
| Accuracy of testing load | Classe 0.5 scala ISO-7500 | |
| LoadTest Range | 1%-100% | |
| Accuracy of deformation | ±0.5% | |
| Deformation measurement range | 1%-100% | |
| Accuracy of deformation | ±0.5% | |
| Deformation resolution | ±1/500000FS | |
| Actuator stroke | 750mm | 650mm |
| Posion rising speed | 60mm/min | 60mm/min |
| Max. Tensile space | 880mm | 850mm |
| Max. Compression space | 590mm | 650mm |
| Distance between columns | 900mm | 840mm |
| Round sample range | Ф15-Ф70m | Ф15-Ф70m |
| Flat sample range | 10-70mm | 10-70mm |
| Power supply | 3-phase-380V-50Hz | |
