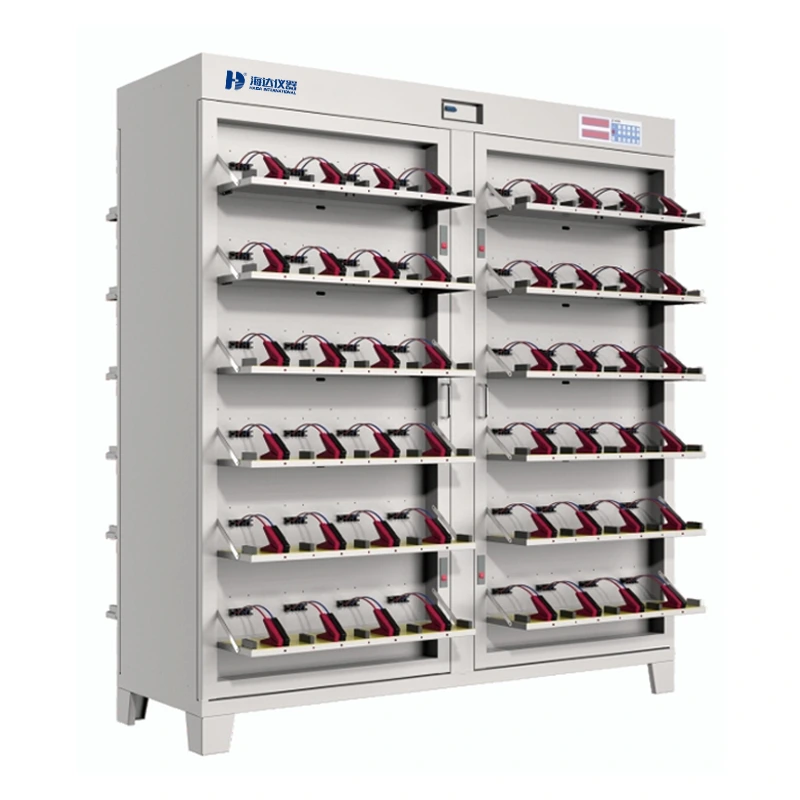

5V 30A Battery Formation& Grading Machine
Mesin Pembentukan & Penilaian Baterai 5V 30A. Mesin ini dapat digunakan untuk baterai silinder (18650, 21700) yang banyak digunakan dalam perangkat elektronik konsumen, termasuk ponsel, laptop, baterai drone, dan lainnya.
Mesin Penyortiran Sel Prismatik dengan fungsi umpan balik energi merupakan generasi terbaru dari peralatan pengujian baterai hemat energi yang didasarkan pada teknologi umpan balik daya frekuensi tinggi PWM, hasil dari penelitian dan pengembangan selama bertahun-tahun. Mesin ini banyak digunakan dalam proses pembentukan baterai lithium-ion dan baterai nikel-metal hidrida, serta pengujian kapasitas baterai nikel-kadmium.
Spesifikasi Produk :
| Model | 8005-HD |
| Channels | 96 Channels |
| Voltage Range | DC0~5V |
| Voltage Accuracy | 0.1mV |
| Output Current Range | 100mA ~30A |
| Current Accuracy | 0.1mA |
| Jig Form | Push Down Four Wire Method Fixture |
| Fixture Spacing | 78.5mm |
| Battery Type | Single Cell Power Battery |
| Working Power Supply | Three-Phase Five-Wire Ac380V±10%, 50Hz |
| Ac Current Distortion Rate | ≤5% |
| Power Consumption | ≤13Kw |
| Power Factor | ≥0.99 |
| Charging Efficiency Of Whole Machine | ≥75% |
| Feeder Net Conversion Efficiency | ≥70% |
| Equipment Failure Rate | <1% |
| Work Environment | Temperature -10 ~ 40℃, Relative Humidity ≤80% |
| Heat-Dissipating Method | Natural Air Intake And Upward Exhaust |
| Control mode | Computer control equipment operation, whole cabinet control/single board start/single point start, with scanning system |
| Communication mode | 485 serial port communication (baud rate 57600)/TCP communication |
| Process setting | Up to 32 steps and 256 cycles can be set |
| Charge voltage | time Constant current, constant voltage, constant current constant voltage |
| Charge end conditions | Voltage, current, time, capacity, -△V |
| Discharge mode | Constant current, constant power, constant resistance |
| Discharge end conditions | Voltage, time, capacity |
| Time range | 0~3000 minutes/step, time unit is min |
| Time accuracy | <+1%60 |
