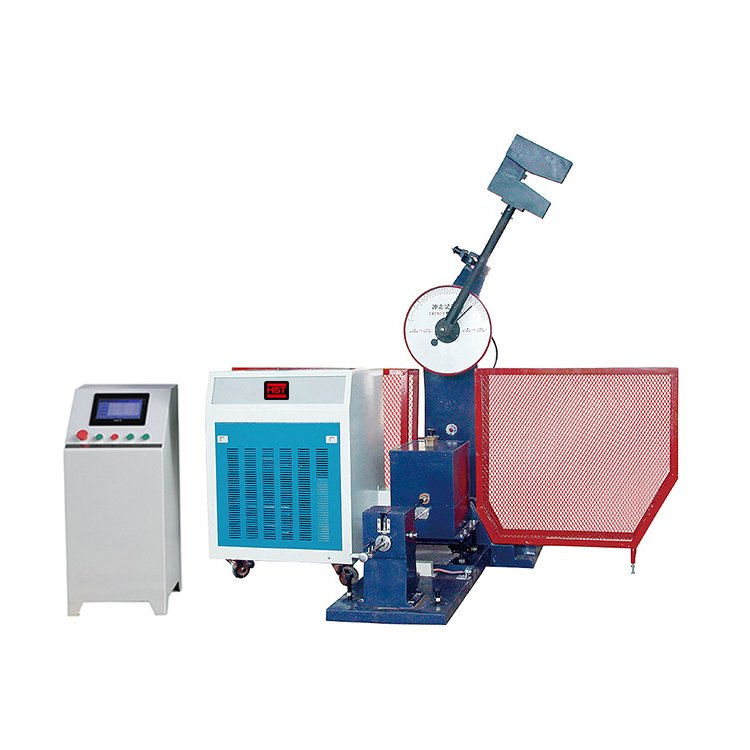

JBDS-Y Mesin Uji Impak Charpy Suhu Rendah dengan Layar Sentuh (-60°C/-80°C)
Aplikasi:
JBDS-Y Mesin Uji Impak Charpy Suhu Rendah dengan Layar Sentuh digunakan untuk mengukur ketahanan material logam terhadap beban dinamis guna menentukan sifat mekanik dan tingkat ketangguhan material saat menerima benturan.
Mesin ini merupakan peralatan pengujian yang penting dan banyak digunakan di industri metalurgi, manufaktur mesin, pabrik baja, laboratorium pengujian material, serta lembaga penelitian untuk mendukung pengujian kualitas dan pengembangan material.
Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
Spesifikasi Teknis:
| Model | JBDS-300Y | JBDS–500Y |
| Impact Energy | 150 J / 300 J | 250 J / 500 J |
| Value Of Every Grid | 1 J | 2 J |
| Control Methods | Single Chip Control | |
| The Distance Between The Pendulum Shaft And Impact Point | 750 mm | 800 mm |
| Impact Speed | 5.2 m/s | 5.4 m/s |
| Impact Pendulum Configuration | 150 J, 1 PC; 300 J, 1 PC | 250 J, 1 PC; 500 J, 1 PC |
| Pre-rising Angle Of The Pendulum | 150° | |
| Specimen Bearer Span | 40+0.2 mm | |
| Round Angle Of The Jaw | R 1.0~1.5 mm | |
| Round Angle Of Impact Edge | R 2.0~2.5 mm (Special Order: R8±0.05 mm) | |
| Angle Accuracy | ±0.1° | |
| Standard Specimen Dimension | 10 mm*10(7.5 or 5) mm*55 mm | |
| Thickness Of Impact Knife | 16 mm | |
| Cooling Way | Compressor Refrigeration | |
| Capacity Of Sample Box | 20 PCS | |
| Range Of Low Temperature | 0°C ~ -60°C Or 0°C ~ -80°C | |
| Precision Of Controlling Temperature | Fluctuation ±0.5°C Grades 1°C | |
| Power Supply | 3phs, 380V, 50Hz | |
