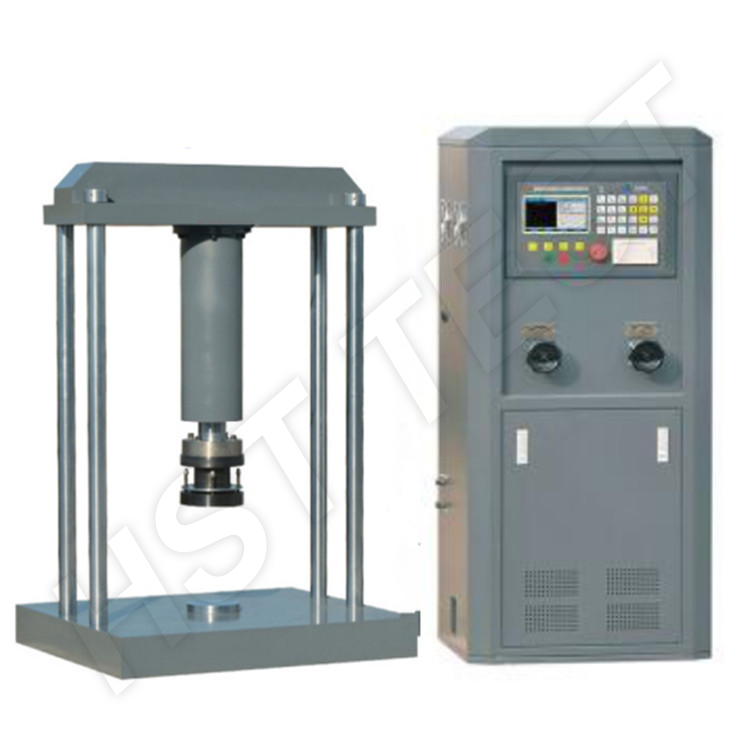

HYS-600S/HYJ-1000S Digital Manhole Cover Compression Testing Machine
HYJ-600S / HYJS-1000S Digital Manhole Cover Pressure Testing Machine adalah mesin uji tekan hidrolik dengan tampilan digital yang dirancang sesuai standar nasional dan industri untuk menguji kapasitas beban dan deformasi manhole cover. Mesin ini digunakan untuk memastikan kekuatan struktural tutup lubang (manhole cover) berbahan besi cor, komposit resin, polymer matrix, dan beton bertulang serat baja.
Mesin ini memiliki struktur rangka kaku dengan sistem hidrolik presisi untuk menghasilkan pengujian yang stabil, akurat, dan sesuai standar pengujian internasional.
Standar | Standards
- CJ/T 3012-1993 — Cast Iron Inspection Manhole Cover
- CJ/T 121-2000 — Recycled Resin Composite Manhole Cover
- CJ/T 211-2005 — Polymer Matrix Composite Manhole Cover
- JC 889-2001 — Steel Fiber Reinforced Concrete Manhole Cover
- GB/T 23857-2009 — Inspection Manhole Cover
- CJ/T 511-2017 — Cast Iron Inspection Manhole Cover
Aplikasi | Application
- Uji kapasitas beban manhole cover | Manhole cover load bearing test
- Uji deformasi tutup lubang | Deformation test of manhole covers
- Besi cor manhole cover | Cast iron manhole covers
- Komposit resin | Resin composite covers
- Polymer matrix composite | Polymer-based composite covers
- Beton bertulang serat baja | Steel fiber concrete covers
- Industri jalan & infrastruktur | Road and infrastructure industry
- Laboratorium pengujian material | Material testing laboratories
Keunggulan | Features
- Struktur rangka kaku & stabil | High stiffness frame structure
- Kontrol digital LCD | LCD digital display controller
- Sistem hidrolik stabil | Stable hydraulic loading system
- Pengukuran gaya real-time | Real-time force display
- Akurasi tinggi | High accuracy (±1%)
- Ruang uji luas | Large test space for easy operation
- Seal piston presisi tinggi | High-performance sealing system
- Sistem filtrasi oli | Ultra-precision oil filtration system
| Parameter | HYJ-600S | HYJS-1000S |
|---|---|---|
| Kapasitas maksimum | 600 kN | 1000 kN |
| Ruang uji efektif | 1200 × 1200 mm | 1200 × 1200 mm |
| Tinggi meja | 200 mm | 200 mm |
| Akurasi gaya | ±1% | ±1% |
| Kecepatan piston maksimum | 80 mm/min | 80 mm/min |
| Ruang tekan maksimum | 400 mm | 400 mm |
| Ukuran platen | Φ360 mm (GB) / Φ250 mm (EU) | Φ360 mm (GB) / Φ250 mm (EU) |
| Rentang deformasi | 0 – 20 mm | 0 – 20 mm |
| Stroke piston | 350 mm | 350 mm |
| Daya listrik | 380V / 220V, 1.5 kW | 380V / 220V, 1.5 kW |
| Dimensi mesin | 2400 × 1200 × 1400 mm | 2400 × 1200 × 1400 mm |
