Spesifikasi GL260 Data Logger
| Item | Description |
|---|---|
| Number of analog input channels | 10 channels |
| External input/output | Input: Trigger/Sampling (1 ch), Logic/Pulse (4 ch) • Voltage range: Up to 24V (common ground) • Signal type: Voltage, Open collector, Relay contact • Threshold: Approx. +2.5V (Hysteresis: 2.5V–3V)Output: Alarm (4 ch) • Output signal: Open collector (pull-up to 5V by 10kΩ resistor) • Max. rating: 30V / 0.5A / 0.2W |
| Sampling interval | 10 ms to 1 hour (10ms–50ms for voltage only; minimum interval depends on number of channels), External signal |
| Time scale of waveform display | 1 sec to 24 hours/division |
| Trigger / Alarm function | Trigger action: Start/Stop capture by trigger Repeat action: Off / On (auto rearmed) Trigger source: Off, Measured signal, Alarm, External, Clock, Week, Time Condition setting: OR/AND combination Analog signal: Rising, Falling, Window-in, Window-out Logic signal: Pattern (high/low combination) Pulse signal: Rising, Falling, Window-in, Window-out |
| Pulse input function | Measurement modes: Rotation count (RPM), Accumulating count, Instant count • Max. frequency: 50kHz • Max. count: 50kC/sampling (16-bit counter) |
| Interface to PC | USB (Hi-speed), WLAN (optional B-568, available in limited regions) |
| Storage device | Internal: Built-in 8GB Flash External: SD card slot (SDHC up to 32GB) Saved contents: Captured data, Settings, Screen copy |
| Display | 4.3-inch TFT color LCD (WQVGA, 480×272 dots) |
| Operating environment | 0–45°C, 5–85% RH (non-condensed) With battery pack: 0–40°C (operation), 15–35°C (charging) |
| Power source | AC adapter: 100–240V AC, 50/60Hz (1 included) DC power: 8.5–24V DC (optional cable B-514) Battery pack: Optional B-573, 7.2V DC, 2875mAh |
| Power consumption | Max. 36 VA (with LCD ON, AC adapter use, and charging) |
| External dimensions (W×D×H) | Approx. 188 × 117 × 42 mm (excluding projections) |
| Weight | Approx. 500 g (excluding AC adapter & battery pack) |
Spesifikasi Teknis Input Terminal GL260
| Item | Description |
|---|---|
| Type of input terminal | M3 screw type terminals (dengan rectangular flat washer) |
| Input method | Photo MOS relay scanning system Semua channel isolated, balanced input |
| Measurement range | Voltage: 20, 50, 100, 200, 500 mV; 1, 2, 5, 10, 20, 50, 100 V; 1–5 V F.S. Thermocouple: K, J, E, T, R, S, B, N, C (W: WRe5-26) Humidity: 0–100% RH (konversi scaling 0–1 V) dengan sensor kelembapan opsional B-530 |
| Filter | Off, 2, 5, 10, 20, 40 (moving average sesuai jumlah yang dipilih) |
| A/D converter | Sigma-Delta type, 16-bit (resolusi efektif: 1/40000 dari full measuring range) |
| Maximum input voltage | Antar terminal (+/–): 20 mV–1 V range = 60 Vp-p 2 V–100 V range = 110 Vp-p Antar input terminal: 60 Vp-p Input terminal – GND: 60 Vp-p |
Spesifikasi GL28-APS Application Software
| Item | Description |
|---|---|
| Model name | GL28-APS |
| Supported OS | Windows 11 (64-bit) / Windows 10 (64-bit / 32-bit) |
| Functions | Kontrol perangkat seri GL, real-time data capture, konversi format data |
| Number of groups | Hingga 4 grup |
| Number of CHs per group | Maksimal sesuai jumlah modul yang terhubung |
| Maximum number of channels | Hingga 1000 channel |
| Settings control | Pengaturan amplifier, capture, trigger/alarm, report, dan lainnya |
| Capturing data | Real-time data dalam format CSV & GBD Binary Data tersimpan di internal memory atau SD card (CSV, GBD Binary) |
| Display | Tampilan analog waveform, logic waveform, pulse waveform, digital values |
| Display modes | Y-T View, Digital View, X-Y View antar cursor (hanya saat replay) |
| File conversion | Antara cursor atau seluruh data |
| Monitor functions | Alarm monitor dapat mengirim email ke alamat yang ditentukan |
| Statistic / History | Menampilkan nilai maksimum, minimum, dan rata-rata selama pengukuran |
| Report function | Membuat laporan harian atau bulanan secara otomatis |
Dimensi

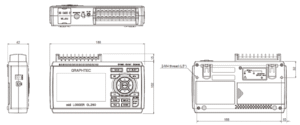

GL260 External Dimensions
Scale : mm
Tolerance : +/- 3 mm

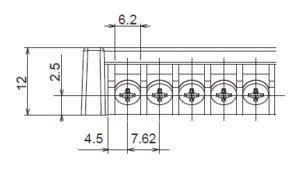

GL260 Terminals
Scale : mm
Tolerance : +/- 0.5 mm
