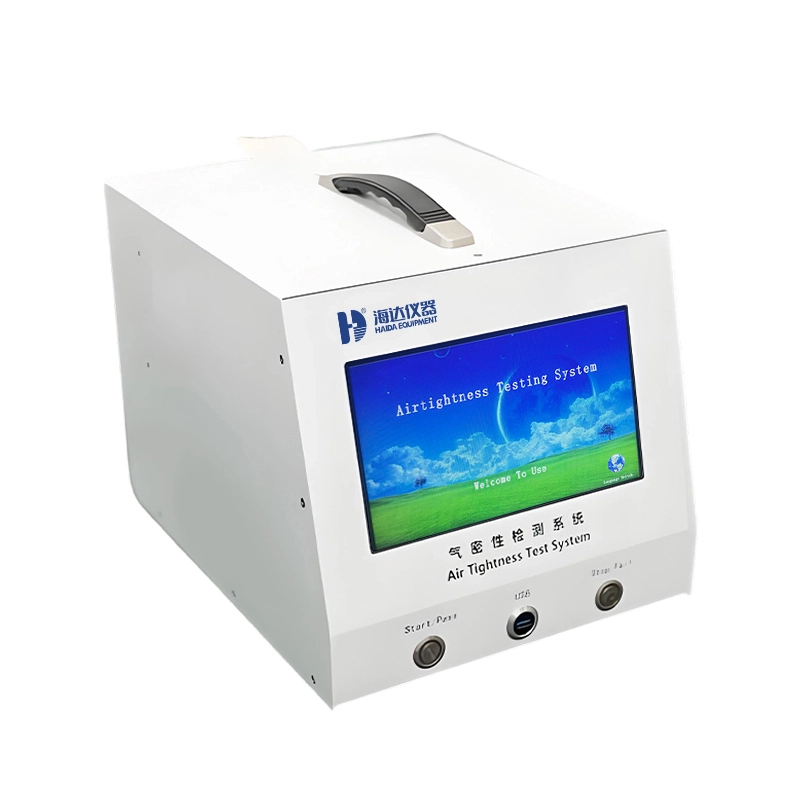

Double channel Differential-Pressure Air Tightness Tester
Double Channel Differential-Pressure Air Tightness Tester adalah alat pengujian yang digunakan untuk mengevaluasi tingkat kedap udara (air tightness) dan kebocoran pada berbagai produk atau komponen dengan metode tekanan diferensial. Sistem dua kanal memungkinkan pengujian atau pemantauan dua saluran secara bersamaan, sehingga proses pemeriksaan kebocoran menjadi lebih efisien dan konsisten.
Dilengkapi dengan sensor tekanan diferensial berpresisi tinggi, sistem pengaturan tekanan, dua kanal pengujian, katup kontrol, serta layar digital untuk menampilkan hasil pengukuran, Double Channel Differential-Pressure Air Tightness Tester mampu mendeteksi kebocoran secara akurat dan stabil. Alat ini banyak digunakan dalam industri otomotif, elektronik, kemasan, komponen rumah tangga, manufaktur, laboratorium kontrol kualitas, dan pusat penelitian untuk memastikan produk memenuhi persyaratan kekedapan dan kualitas sesuai standar ASTM, ISO, EN, serta standar pengujian terkait lainnya.
Spesifikasi Produk
| Model | 5162-HD |
| Instrument Type | Direct-pressure |
| Power supply | AC 220 V/50Hz (±10%) |
| Max power | 50W |
| Cabinet dimension(W*D*H) | 30 x 37 x 30 cm (Double channel) |
| Cabinet material | Precision sheet metal, 1.5mm carbon steel |
| Cabinet surface | High-gloss white, Plastic spraying outer surface |
| Overall weight (Net weight) | 18Kg (Single channel) |
| Air supply pressure | 0.2Mpa~1.0Mpa (Clean, dry, non-corrosive) |
| Air supply medium | Compressed air |
| Air pressure stabilizer | Two-stage (Filtration/pressure-reduction) |
| Air intake port | Φ8 |
| Test port | Φ6 |
| Test quantity | Double channel (test 2 product at a time) |
| Test range (Max test range, subject to customer requirements) | 5-700Kpa (Single positive pressure model) |
| -70-0Kpa (Single negative pressure model) | |
| -70-700Kpa (Full-function model) | |
| Pressure adjustment mode | Manual (Pressure regulation: Automatic pressure adjustment is custom-made) |
| Pressure regulation accuracy (Pressure stabilization effect: sensor display accuracy<5pa) | ≤200Pa (manual regulator) |
| ≤1Kpa (auto regulator) | |
| Pressure mode | Positive pressure (Only positive pressure test available) |
| Negative pressure (Only negative pressure test available) | |
| Positive/negative pressure (Full-function model supports both) | |
| Sensor accuracy | ≤0.1% F.S Full scale |
| Differential pressure sensor accuracy | ≤0.05% F.S |
| Inflation speed | 0.63dm3/(s·bar) Flow rate when pressure difference is 1 bar |
| Resolution (Display accuracy) | 0.1pa |
| I/O contact | I=8/O=16 (Dual-channel) Input: start/stop/raster/emergency stop. Output: pass/fail signal/DC24V,GND, also supports control of multiple relays |
| RS232 | 1. Connect to supper computer for communication |
| 2. Connect to label printer | |
| 1. Mudbus RTU standard protocol | |
| 2. Auto generate QR codes, barcodes&characters with real-time test data | |
| USB port | Support barcode scanners, USB flash drives, and mice. |
| 1. Scan QR & barcode, export historical records | |
| 2. Scan-trigger test: auto-launch detection via scanner gun without pressing any buttons. | |
| Ethernet port | Connect to upper computer for communication (TCP/IP standard protocol) |
| Display screen | 10.1-inch color LCD Widescreen (262K colors, 1024×600 resolution) |
| Operation interface | Touch-type (Human-machine interaction) |
| Language | Chinese/English |
| Program quantity | 120 group per channel (Freely switchable, custom program names supported) |
| Test pressure unit | 11 types (Pa N/m2 mbar hpa kpa bar Mpa psi ib/in mmHg Torr) |
| Leakage value unit | 10 types (Pa mmHg Torr mbar hpa kpa pa/s kpa/s pa/min kpa/min) |
| Leakage rate unit | 8 types (cm3/m3 sccm mL/min mL/s L/min mL/h L/h pa.m3/s) |
| Judgment mode | Automatic judgment with sound and light alarm |
| Pass: Silent + Green Light | |
| Fail: Beeping sound + Red Light | |
| Historical data export | Store up to 100,000 test records; USB export available (Automatically delete the earliest 20% of records when the maximum capacity is exceeded.) |
| Inflation time | 1-999999 seconds (Adjustable as required) |
| Pressure holding time | 1-999999 seconds (Adjustable as required) |
| Testing Time | 1-999999 seconds (Adjustable as required) |
| Pressure mode | Positive pressure (Positive pressure test) |
| Negative pressure (Negative pressure test) | |
| Test mode | Direct (Direct product internal inflation test) |
| Volume (External inflation test of the product, equal-pressure equal-volume test mode) | |
| Micro-trace (External inflation test of the product, equal-pressure equal-volume test mode) | |
| Pre-charging function | Only supports full-function positive and negative pressure instruments |
| Usage environment | |
| Storage temperature | -10℃~60℃ |
| Storage humidity | 5%～90%(No condensation) |
| Operating temperature | 0℃～45℃ |
| Operating humidity | 5%～90%(No condensation) |
| Usage altitude | ≤ 500 m |
