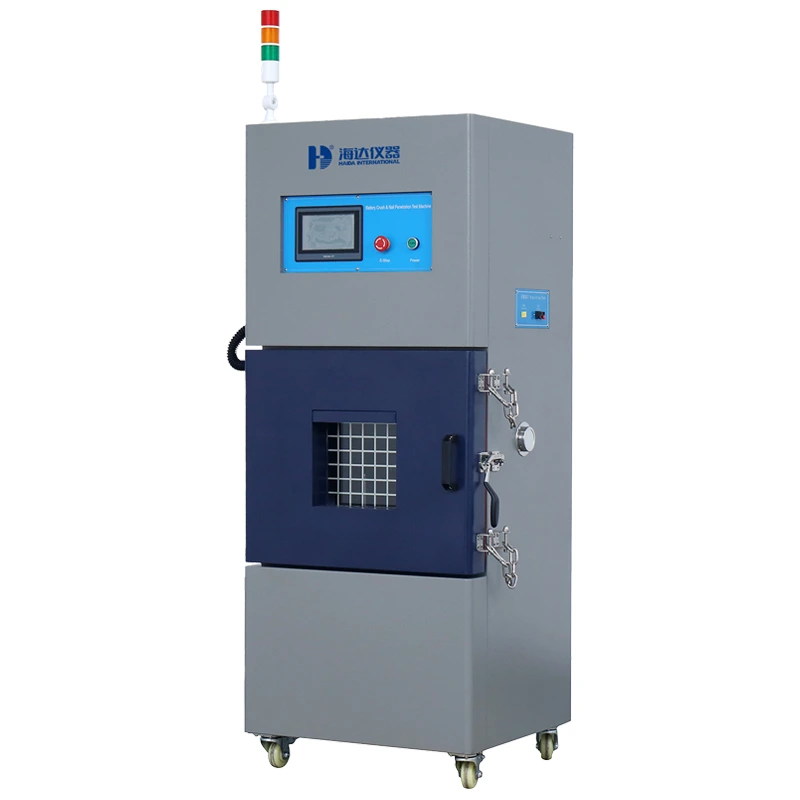

Battery Crush & Nail Penetration Test Chamber
Ruang Uji Penekanan Baterai dan Penetrasi Paku digunakan untuk mensimulasikan uji penetrasi baterai oleh benda tajam selama proses pengemasan, pengangkutan, penyimpanan, penggunaan, dan pembuangan.
Standar
UL 1642:2012; UL 2054:2012; IEC 62281:2004; UN 38.3
Keunggulan Produk
- Akurasi Pengujian Tinggi
- Fitur Keselamatan Canggih
- Parameter Pengujian yang Fleksibel
- Sistem Pemantauan Komprehensif
- Desain Kokoh dan Tahan Lama.
- Memenuhi Standar Internasional
Spesifikasi
| Model | 212-HD |
| Drive mode | Servo motor drive; |
| Control method | PLC touch screen control; |
| Force range | 1～20kN; |
| Extrusion stroke | 250mm; |
| Force value display | touch screen display; |
| Extrusion head | Extrusion head area ≥20cm²; |
| Extrusion degree | Extrusion pressure reaches 13±0.2kN, keep for 1min; |
| Test space | 200x200x200mm (width x depth x height) |
| External material | A3 steel plate and painted, thickness 1.5mm; |
| Material of inner box | SUS#304, thickness 1.2mm; |
| Steel needle | φ2mm～φ8mm high temperature resistant steel needle, the length is 100mm (can be specified); |
| Inner box size | 520x450x560mm (width x depth x height); |
| Dimensions | 800x700x1720mm (width x depth x height, including door lock); |
| Pressure relief door size | 200x200mm; |
| Smoke exhaust pipe | diameter φ100mm, located at the back of the box; |
