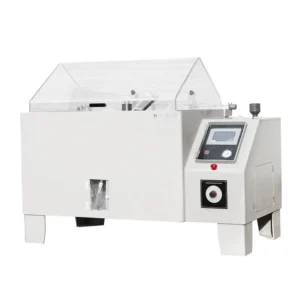

Salt Spray Corrosion Testing Chamber
Salt Spray Corrosion Testing Chamber adalah peralatan uji lingkungan yang dirancang untuk mensimulasikan kondisi korosi akibat kabut garam (salt fog) atau semprotan garam (salt spray) guna mengevaluasi ketahanan material, lapisan pelindung, dan produk terhadap lingkungan korosif. Chamber ini mempercepat proses korosi yang secara alami membutuhkan waktu bertahun-tahun, sehingga memungkinkan produsen melakukan pengujian ketahanan korosi secara cepat dan efisien. Peralatan ini banyak digunakan dalam industri otomotif, elektronik, aerospace, pelapisan logam, serta penelitian material.
Spesifikasi Produk :
| Model | HD-E808-90 |
| Internal Size (W*D*H) | 900*600*500mm |
| External Size (W*D*H) | 1410*850*1200mm |
| Equipment Material | P.V.C rigid plastic plate, thickness 8mm |
| Sample tray | Diameter 10mm glass fiber rod, anti-rust
V-shape plastic steel to make sure sample in 15~30 degree inclined |
| Temperature Range | Room temperature ~ 55℃ |
| Temperature Fluctuations | ≤±0.5℃ |
| Temperature Uniformity | ≤±2℃ |
| Temperature Precision | ±1℃ |
| Spraying method | Continuous and Periodic spray type |
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method (CASS) 50±1℃ |
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method (CASS) 63±1℃ |
| Brine Temperature | 35℃±1℃ |
| Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
| PH value | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 |
| Lab Volume | 270L |
| Brine Tank Capacity | 25L |
| Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
| Accessories | Testing Salt/ Measuring tank/Nozzle Equipment x 1 set |
| Air source | 1HP Air pump (provided by buyer) |
| Test criteria | ASTM B117-08, ISO 9227… |
