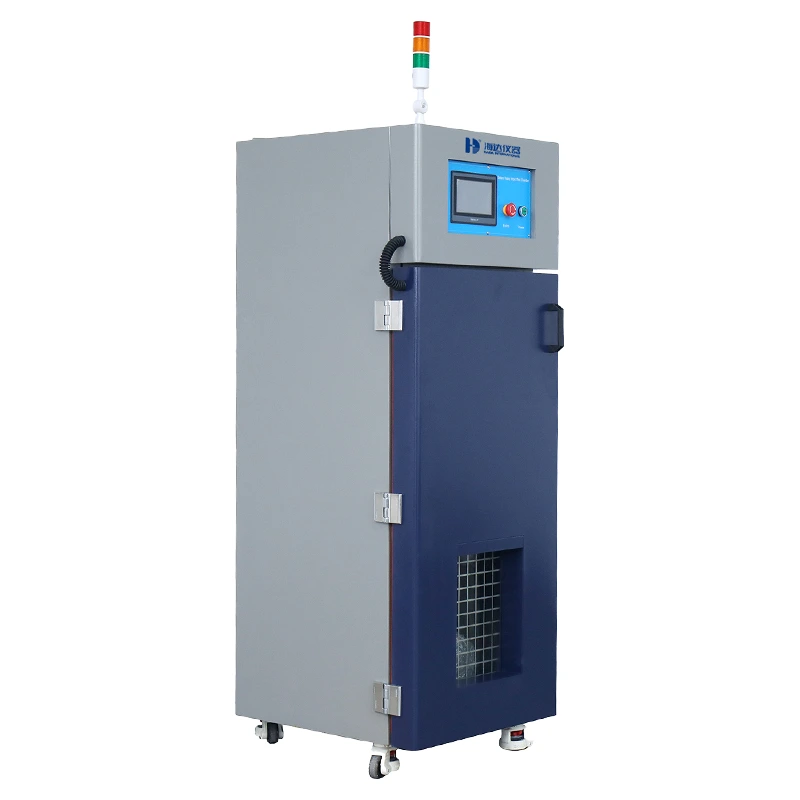

Chamber Uji Benturan Baterai | Battery Impact Test Chamber 206-HD Haida

Battery Impact Test Chamber

Ruang Uji Benturan Baterai menguji kinerja keselamatan baterai melalui benturan dengan beban berbeda dari ketinggian yang berbeda serta pada area yang berbeda. Setelah serangkaian pengujian pada alat uji benturan baterai ini, baterai tidak boleh menimbulkan api atau ledakan. Perangkat ini merupakan salah satu jenis peralatan pengujian baterai yang populer di kalangan produsen baterai. Pengujian

Standar :

UL 1642 UN 38.3

Keunggulan Produk

Presisi Tinggi
Keamanan Maksimal
Desain Kokoh dan Tahan Lama
Pengujian yang Fleksibel
Antarmuka yang Mudah Digunakan
Sesuai Standar Internasional (IEC, UL, UN38.3)

Spesifikasi

Model	206-HD
Weight weight	9.1kg and 10kg;
Impact height	0-1000mm (can be set);
Height display	LED meter display;
Displacement accuracy	≤±5mm;
Impact method	free fall;
Control mode	PLC touch screen control;
Impact floor material	No. 45 steel, thickness 30 password;
Metal rod	15.8±0.2mm (5/8 inch) steel rod;
Internal material	SUS#304 stainless steel plate, thickness 1.2mm; Teflon melt adhesive tape is applied to 1/3 of the place, high temperature resistance, corrosion resistance, insulation and easy to clean.
External material	Cold-rolled sheet baking varnish treatment, thickness 1.5mm;
Pressure relief door size	200x200mm;
Smoke exhaust pipe	Diameter φ100mm, located at the back of the box;
Box door	A single door opens to the left, and an explosion-proof chain is installed on the side of the box door;
The maximum size of the battery tested	200x200x200mm (width x depth x height);
Inner box size	490x520x1430mm (width x depth x height);
Dimensions	700x1000x1720mm (width x depth x height, including door lock);
Impact method	Lift the falling ball to a certain height and release it, and the falling ball falls freely in the vertical direction, without tilting or shaking;
Weight weight	9.1kg and 10kg;
Impact height	0-1000mm (can be set);
Height display	LED meter display;
