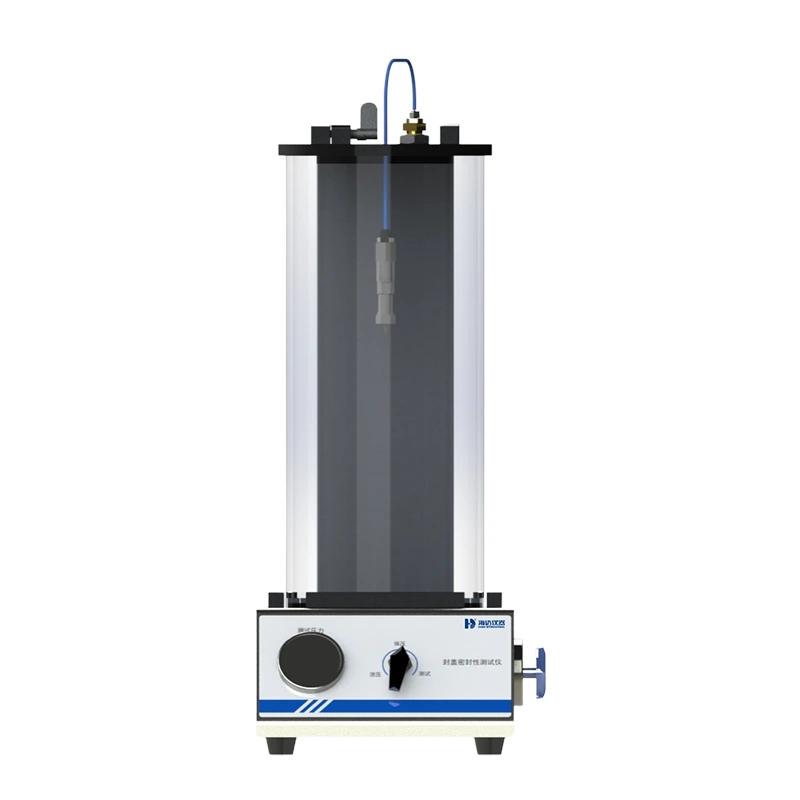

Bottle Cap Secure Seal Tester
Bottle Cap Secure Seal Tester adalah alat pengujian yang digunakan untuk mengevaluasi integritas segel (seal integrity) dan ketahanan kebocoran (leak resistance) pada tutup botol, tutup kaleng, serta sistem penutupan kemasan lainnya. Alat ini bekerja dengan memberikan tekanan internal terkontrol pada wadah yang telah ditutup untuk menentukan apakah tutup dan segel mampu menahan tekanan tanpa mengalami kebocoran atau kegagalan penyegelan. Pengujian ini sangat penting dalam industri minuman, makanan, farmasi, kosmetik, dan kimia untuk memastikan keamanan serta kualitas kemasan.
Produk Spesifikasi
| Model | 5082-HD |
| Pressurization | Compressed air or carbon dioxide is used for inflation and pressurization |
| Positive pressure measurement | Avoids the deficiency of negative pressure measurement that the pressure is less than 1 bar |
| Test pressure range | 0-16bar (1.6Mpa) |
| 0-16bar (1.6Mpa) | Made of oxidized aluminum, stainless steel and plastic materials, strong and durable |
| The instrument is equipped with a pressure reducing valve inside to easily set the maximum test pressure; | |
| Precise flow control, adjustable pressure increase speed, adjustment range: the time to increase the pressure to 1Mpa can be arbitrarily adjusted in the range of 5-60 seconds | |
| Many safety features | Pressure reducing valve, safety valve, barrel cover safety latch, pressure-opening valve (measurement cannot be started without the test bucket), and exhaust holes on the instrument cover for rapid gas discharge (measurement cannot be started without the barrel cover, and pressure is released immediately after the barrel cover is opened) |
| Pressure gauge division | 0.05Mpa |
| Pressure gauge display range | 0-1.6Mpa |
| Maximum size of the measured sample | 330 * 150mm (height* diameter) |
| Dimensions | length 320 * width 380* height 720 mm |
| Net weight | 15 kg |
